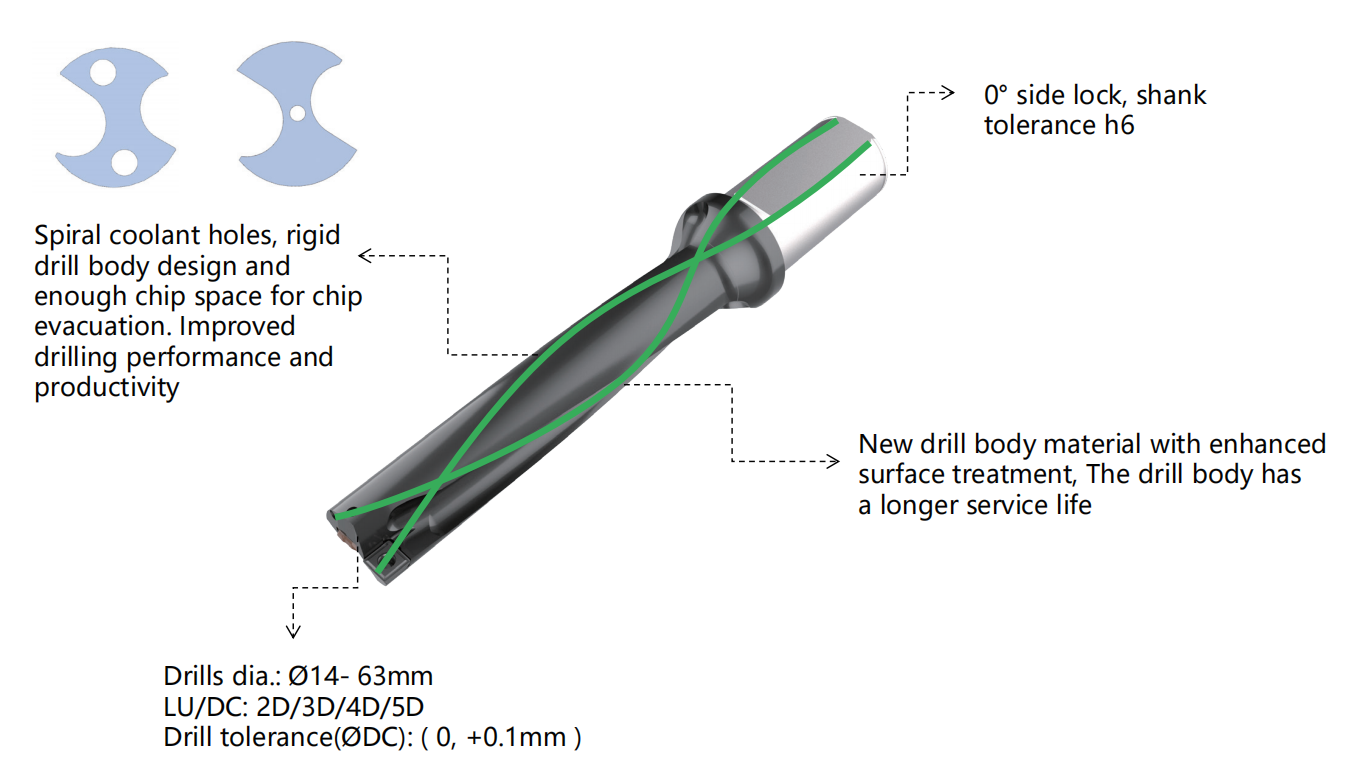

New Product | HY Series Drills: High Efficiency, High Rigidity
To meet customers' drilling requirements for high-efficiency, automated operations and difficult-to-machine working conditions, ACHTECK launches the new HY series, building on the legacy of its conventional HP series drills.
Through upgrades to drill body material, drill body manufacturing process, and graded insert overlapping design, the HY series shallow hole drills expand the application scope of ACHTECK's drilling product portfolio. They deliver more tailored solutions for customers, paired with excellent chip control and a wide selection of grades, to bring higher profitability.

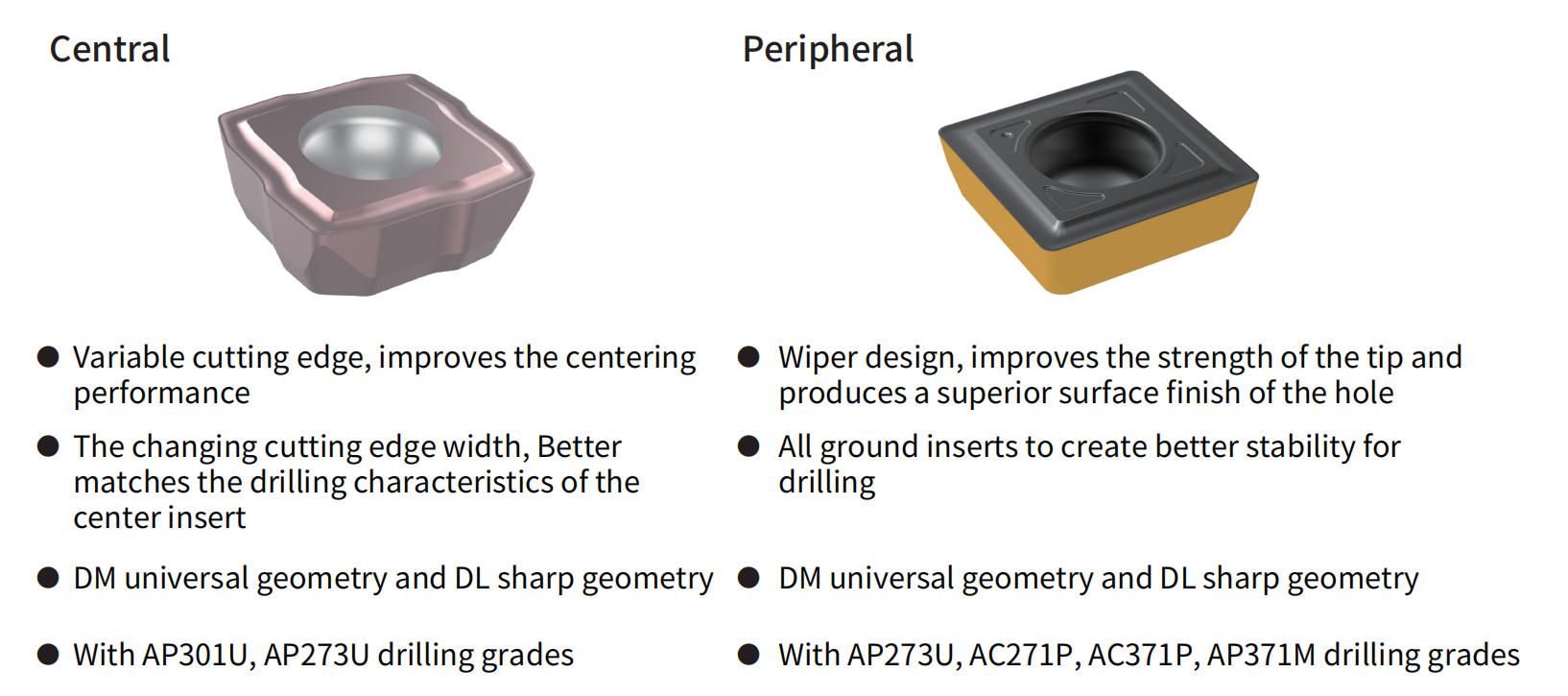

HY Series Drill Inserts

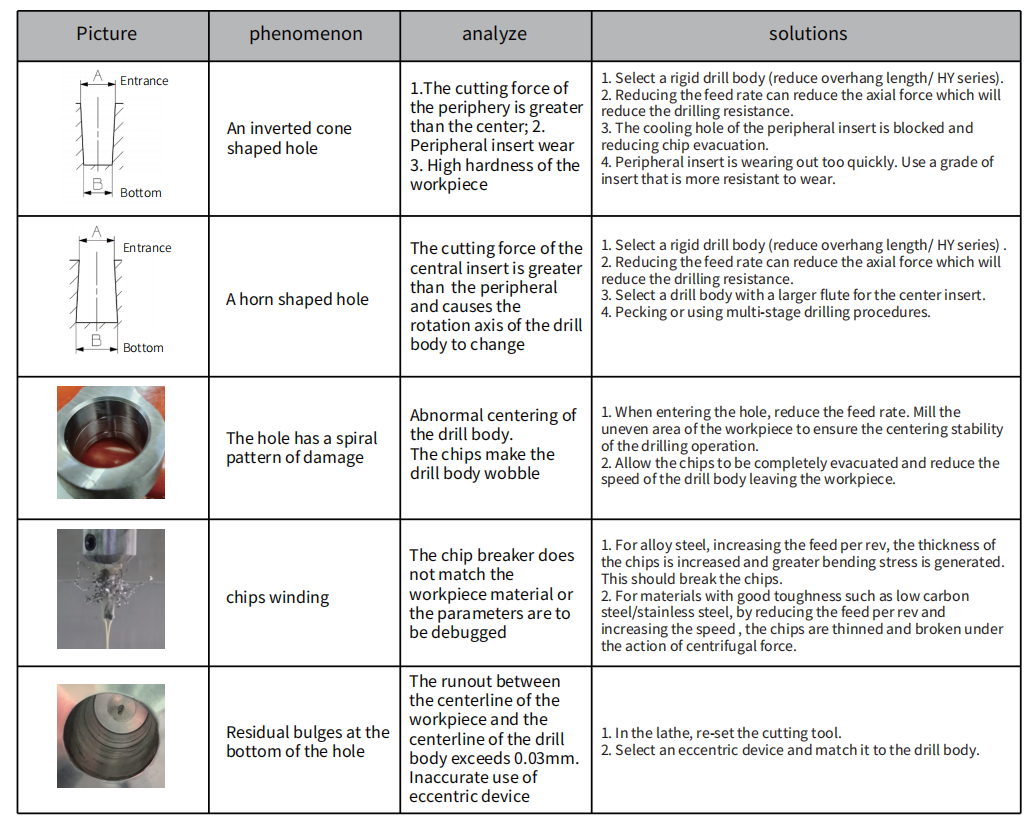

Common Application Issues and Solutions for HY Series Shallow Hole Drills
Application Scenarios
The HY series serves as a supplementary product to the HP series for difficult-to-machine working conditions:
Applications requiring positive tolerance for hole diameter, such as tap drill holes
Applications prone to chip entanglement when using the conventional HP series
Difficult-to-machine scenarios with materials including forgings, cast steel and ADI nodular cast iron, with a hardness range of approximately HRC 28–38
Application Cases
