New Product | Thread Turning tools
Thread machining is one of the most common operations in metal cutting. For thread turning applications, ACHTECK has fully upgraded its corresponding solutions.

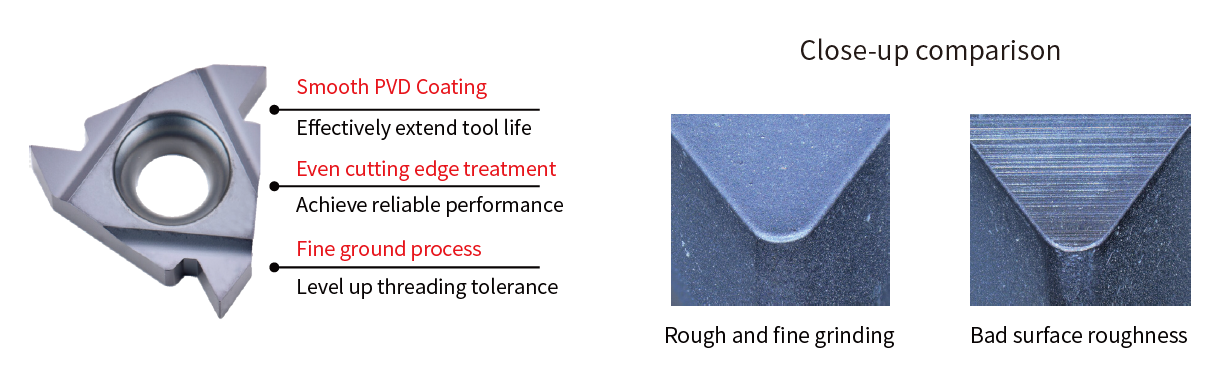

Key Product Features
Application Essentials
The helix angle of a thread is determined by the specific relationship between thread diameter and pitch. Thread turning combines the characteristics of both form machining and multi-edge cutting. To achieve precise thread machining and extend insert tool life, the tilt angle of the insert must be finely adjusted via the tool holder and shim, so that the relief angles on both cutting edges of the insert are as consistent as possible. This ensures stable and reliable thread machining accuracy and significantly improves insert durability.
Product Selection Guidelines
Select the thread machining method based on the machine tool (pay attention to thread hand)
Select the appropriate tool holder based on the machine tool (pay attention to tool center height)
Calculate the helix angle and select the matching shim (pay attention to helix angle)
Determine the number of passes and select suitable machining parameters according to the properties of the workpiece material
Finalize the tool list

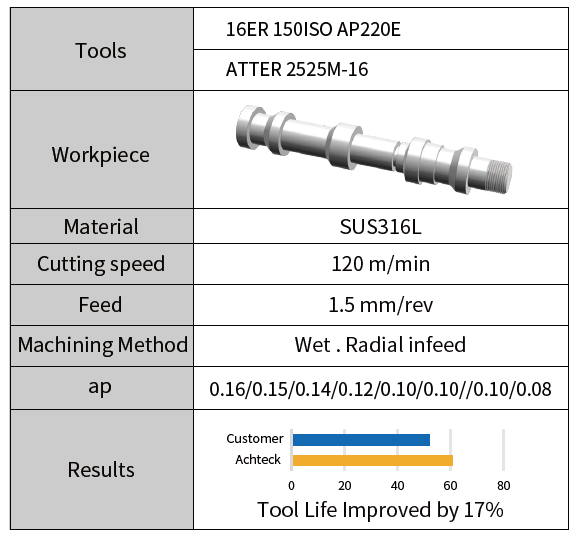

Test Cases
