Achteck Cutting Tools Breaks Through High-Temperature Alloy Bottlenecks, Achieving Self-Reliance in High-End Manufacturing
Deep Process Expertise, Technological Breakthroughs – Making High-Temperature Alloy Cutting No Longer Difficult

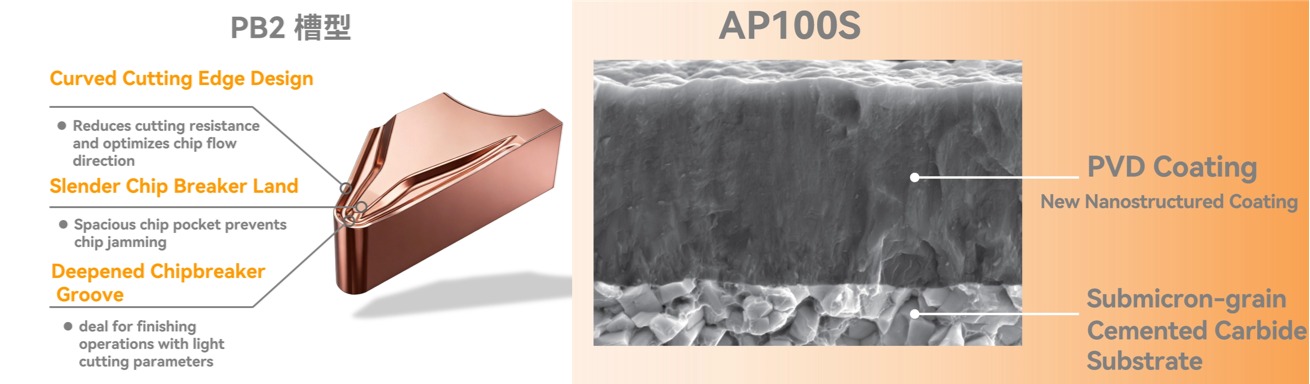

The superior performance of Achieving Cutting Tools products stems from comprehensive technological innovation in substrate, coating, and groove geometry:
01 Submicron-grain alloy substrate
Balancing high hardness and strong toughness, it effectively resists impact and extrusion during high-temperature alloy cutting, fundamentally eliminating failure issues such as insert chipping and corner breakage. At the same time, its excellent wear resistance significantly extends tool life, reduces the frequency of machine stoppages for tool changes and adjustments, effectively improves machine utilization, and reduces tooling consumable costs.
02 New PVD high-hardness nanostructured coating
The self-developed dense nanostructured coating features high adhesion strength between the coating and the substrate, with an extremely smooth coating surface that significantly reduces friction resistance during cutting. It inhibits built-up edge adhesion to the workpiece from the source, avoiding machining defects such as scratches and dimensional deviations. It not only stably ensures the surface quality of finished workpieces and reduces scrap losses, but also withstands high-temperature cutting conditions, further extending tool life.
03 PB2 exclusive finishing groove geometry
Curved cutting edge design: Reduces cutting resistance, optimizes chip flow direction, lowers machine tool load, reduces equipment wear, minimizes vibration, and ensures stable workpiece dimensional accuracy.
Slender chip breaker: Increases chip space, solves chip clogging issues in finishing, avoids scratching the machined surface, improves workpiece surface finish, and reduces product scrap rate.
Deepened chip groove: Precisely matches the small-parameter machining conditions of finishing, enabling controlled and stable chip breaking even under micro-cutting conditions, eliminating the need for mid-process stoppages to clear chips, and adapting to long-duration continuous automated production.
With the integrated synergy of the three core technologies—substrate, coating, and groove geometry—targeting high-temperature alloy finishing applications, the solution delivers three core values to customers: stable cutting process without sudden tool chipping, significantly extended tool life; reduced consumable costs, smooth chip evacuation without clogging issues, while balancing machining accuracy, production efficiency, and overall tooling cost, helping customers increase finishing capacity and significantly reduce machining costs.
Verified by Test Data! Full Benchmarking Against International First-Tier Brands
Rigorous laboratory benchmarking and precise analysis
Machining equipment: CTX 510 horizontal turning center, external turning tool holder interface 25×25, external coolant condition
Test workpiece: GH4169 nickel-based high-temperature alloy pre-machined bar, dimensions Φ150×480, tensile strength 1275MPa, hardness HRC42 (industry-typical hardness for high-temperature alloy machining)

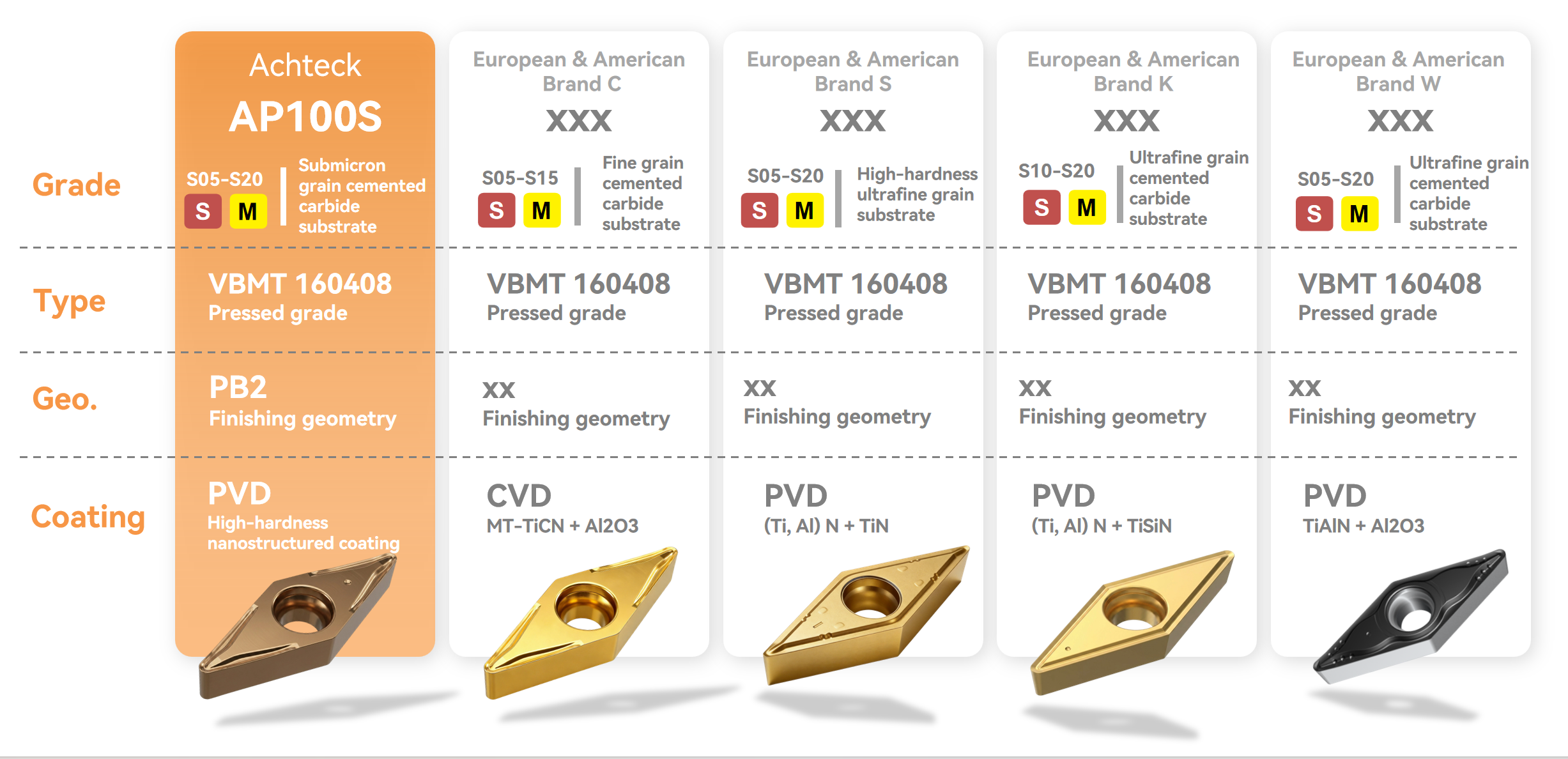

Tooling solution: Uniformly using SVJNL 2525-M16 tool holder, VBMT 160408 inserts
Cutting parameters: Cutting speed Vc=60m/min, feed rate fn=0.20mm/rev, depth of cut ap=0.20mm
All tests were conducted under identical conditions, comparing the comprehensive performance of Achieving Cutting Tools AP100S against 4 mainstream European and American brand high-temperature alloy inserts.

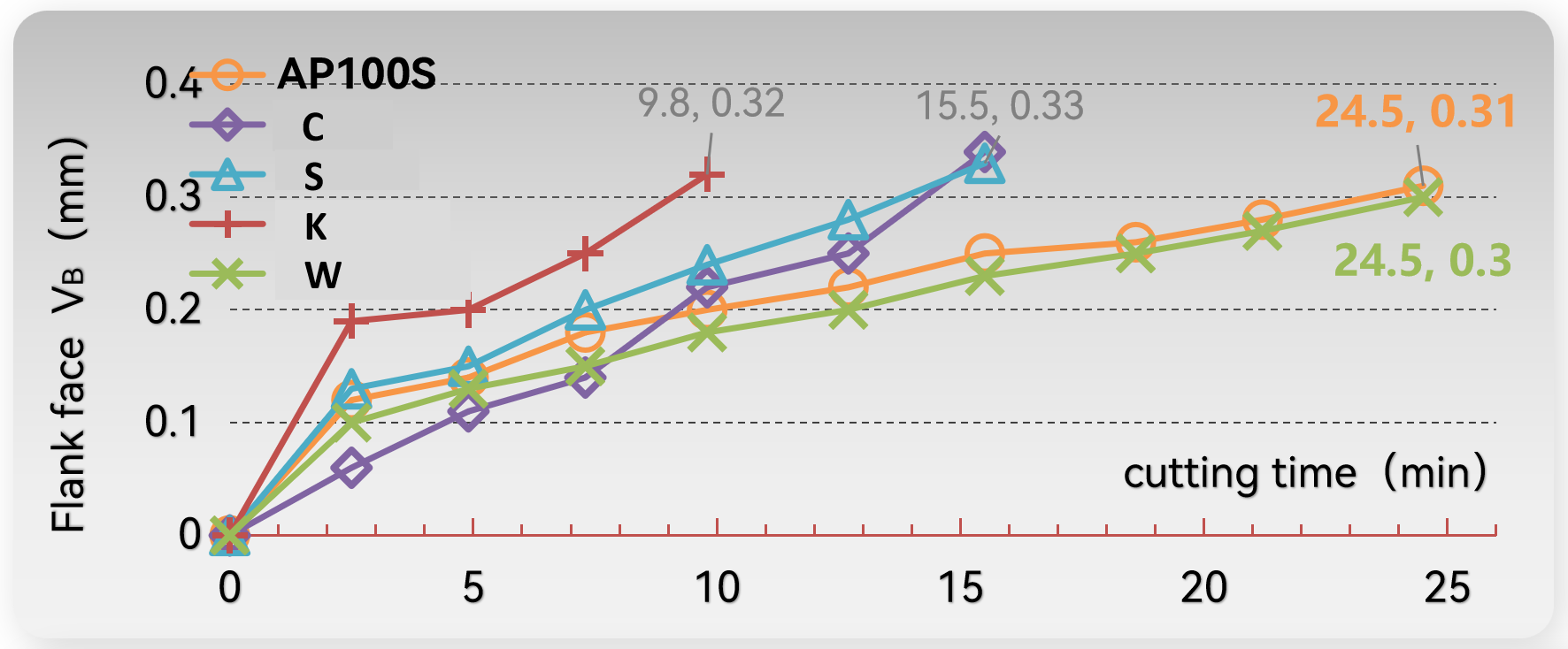

Final insert life comparison

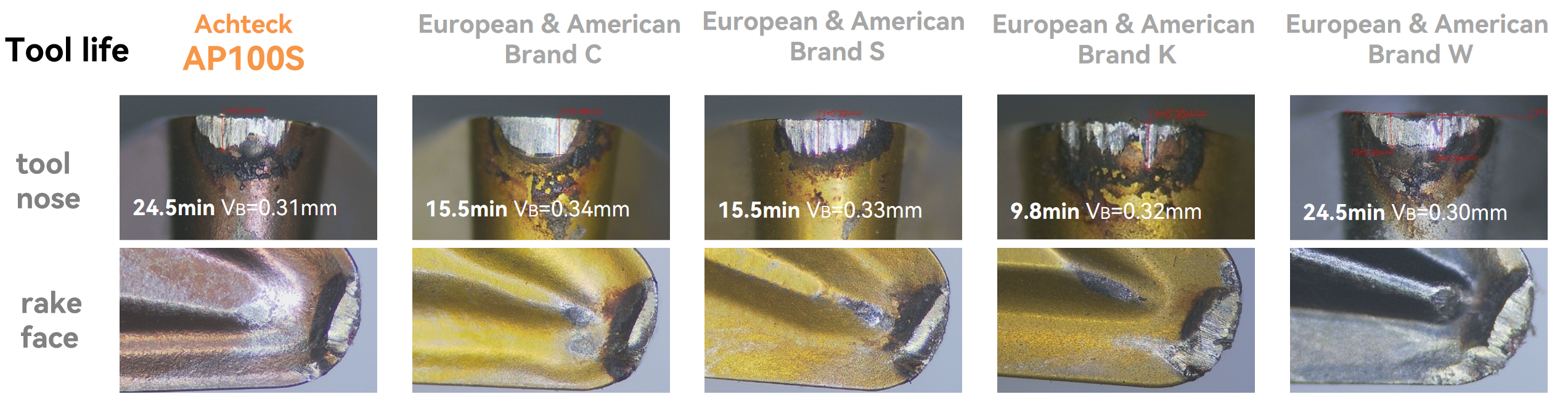

Under the same machining parameters, the test results for the final tool life of each brand (flank wear VB≈0.3mm):
Achieving Cutting Tools AP100S achieves a service life on par with top international brands, and even surpasses some mainstream European and American products.

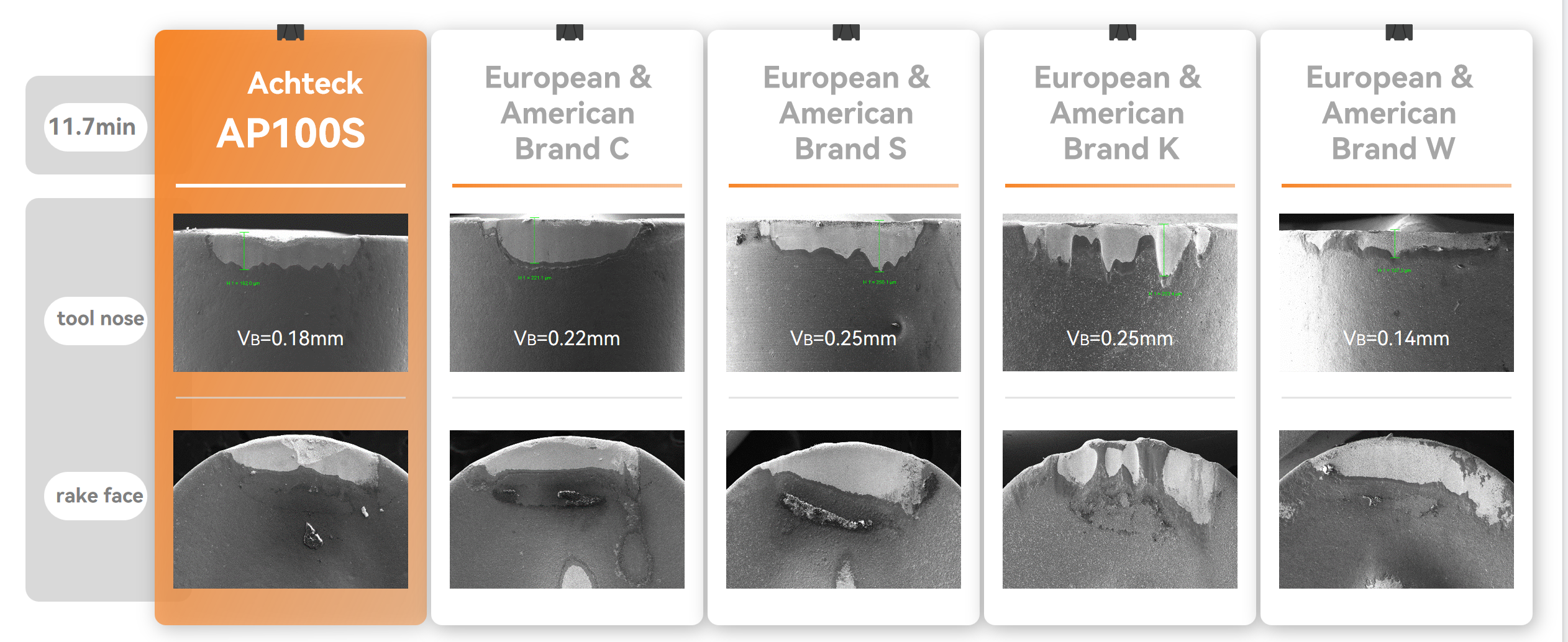

Intermediate tool wear condition comparison
Wear condition of inserts inspected after 11.7 minutes of machining:
澳克泰Achieving Cutting Tools AP100S: Slight wear on the tool tip and rake face, intact cutting edge without chipping, and no significant coating peeling.
Competing European and American tools: Generally more severe cutting edge wear over the same period, with some products showing signs of coating peeling and edge chipping.
Comparison result: AP100S's excellent wear resistance and chipping resistance enable long-term stable cutting performance, avoiding dimensional deviations and increased scrap rates caused by tool wear.

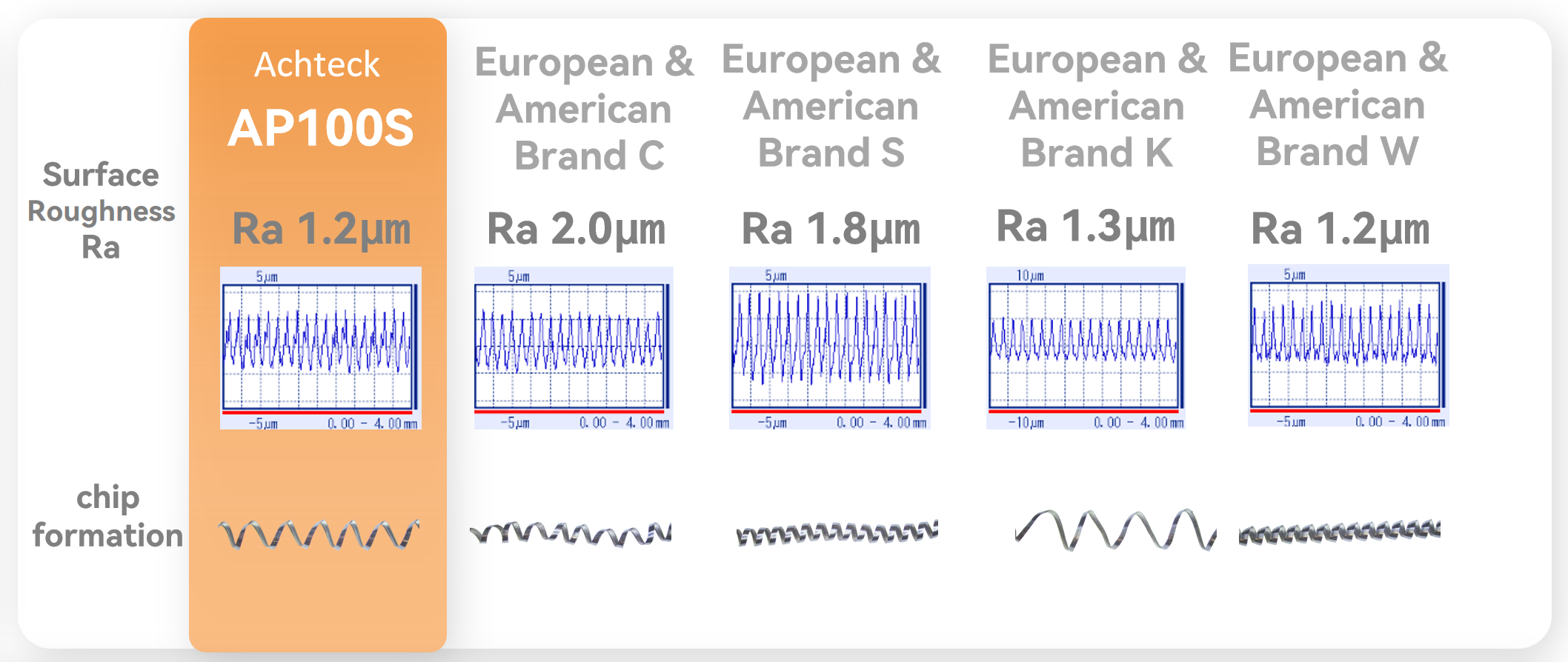

Surface quality and chip morphology comparison
The surface quality of workpieces machined by AP100S reaches the level of top international brands, directly reducing subsequent grinding and polishing operations, shortening the production process, and improving the finished product yield rate.
Achieving Cutting Tools AP100S produces smoothly curled chips with excellent chip evacuation, without chip wrapping or jamming issues; some European and American brands exhibited irregular chip shapes and wrapping, further validating the chip control advantage of the PB2 groove geometry in finishing applications.
Internal trial cutting summary comparison:
Note: Final life is based on flank wear VB≈0.3mm, and roughness measurements were all taken at the 6-minute time point.

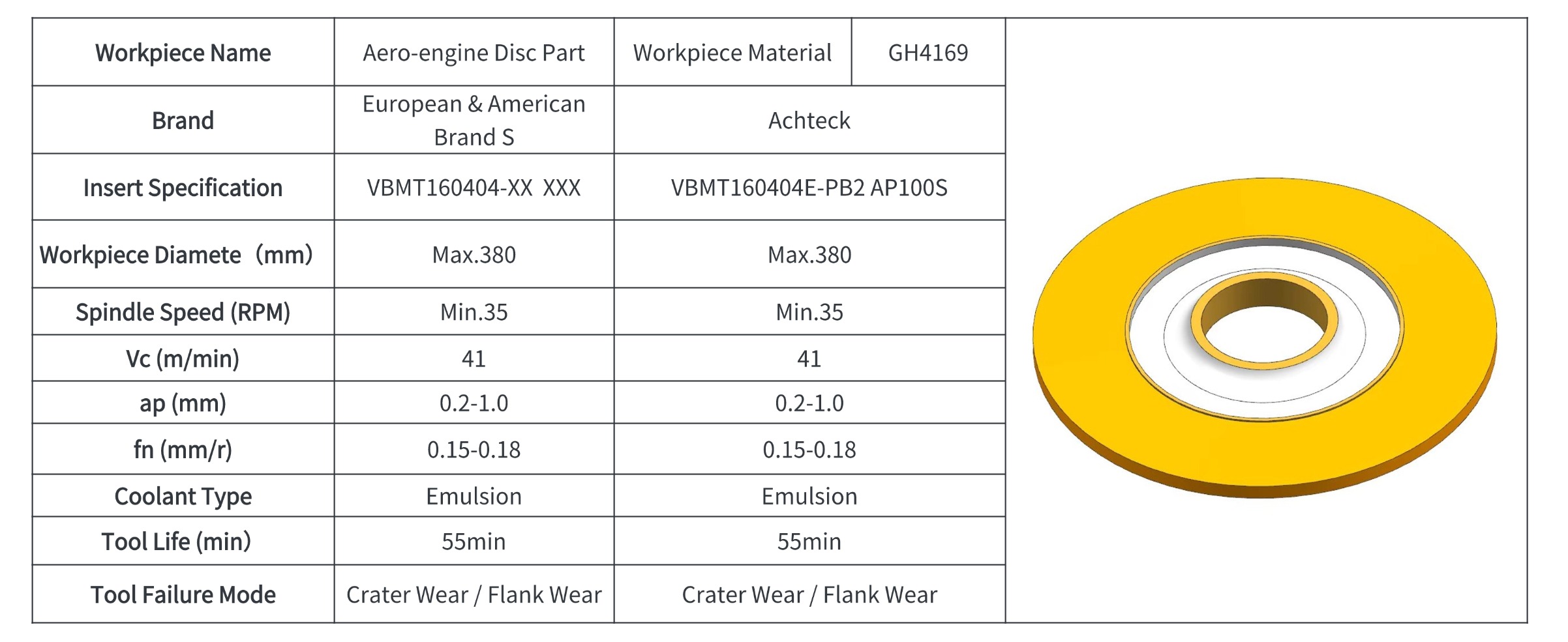

On-site actual cutting proves effective, matching imported tools without compromise
The conclusion of this full-process validation is clear: In GH4169 high-temperature alloy finishing applications, Achieving Cutting Tools AP100S delivers comprehensive performance fully on par with international high-end brands, and can directly replace imported tools of the same type.
Achieving Self-Reliant Tooling Control, Empowering High-End Manufacturing Quality and Efficiency
For domestic manufacturing enterprises, choosing Achieving Cutting Tools AP100S means:
Lower usage cost: Compared with imported tools, procurement costs are further reduced, while both tool life and efficiency are optimized, lowering per-part tooling costs.
Stable supply chain and performance: Local production ensures timely supply, with the entire industrial process from powder to finished product, and quality control that is more stringent than the vast majority of imported brands.
Strong technical service support: The local technical team provides on-site process support and customized optimization solutions, with service efficiency surpassing most imported brands.
From aerospace engine components to high-temperature alloy equipment in the oil and gas energy industry, Achieving Cutting Tools AP100S, with its hard-core performance and outstanding stability, is becoming the preferred solution for domestic substitution in the high-temperature alloy finishing field, helping China's high-end manufacturing break free from import dependence and achieve self-reliance and autonomous control!
