ACHTECK Launches All-New ATG Three-Edge Grooving Insert Series for Precision Shallow Grooving

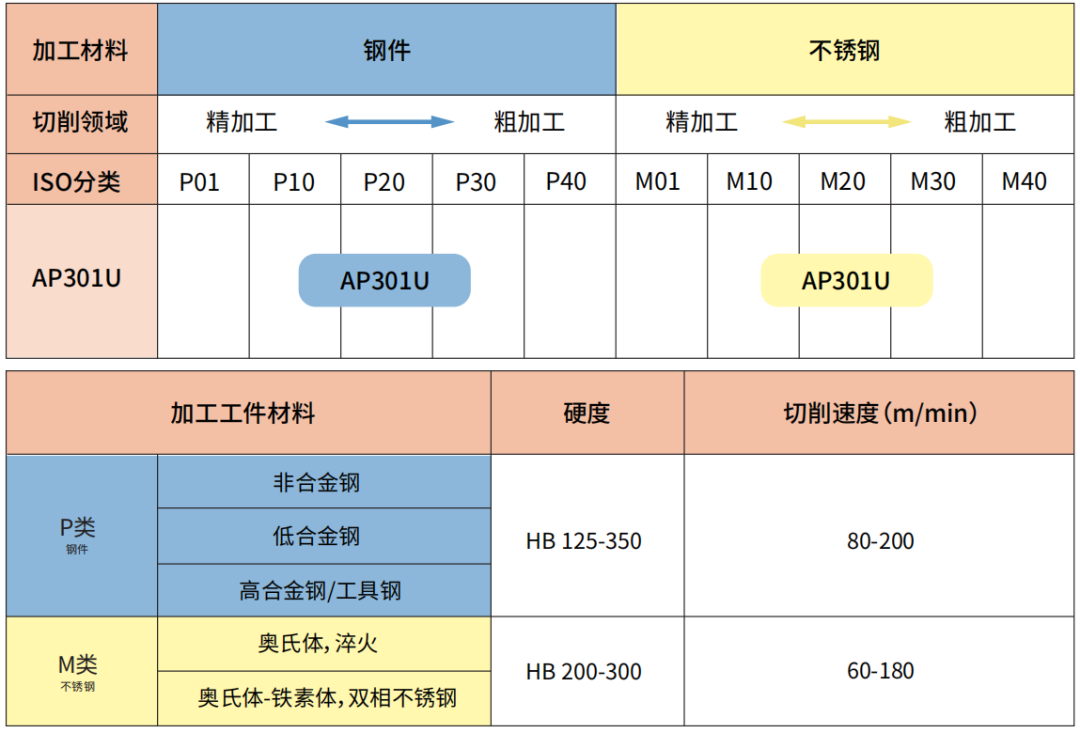

The structure of the ATG series effectively ensures machining accuracy and reduces vibration, guaranteeing the dimensional stability of groove profiles and superior surface finish. Featuring the general-purpose AP301U grade, the series is compatible with a wide range of workpiece materials and delivers excellent stability when machining steel, stainless steel and ductile materials.
The inserts adopt a reinforced cutting edge design to adapt to varying operating conditions from semi-finishing to roughing, and maintain stable performance especially during interrupted cutting or at high feed rates. Meanwhile, the ATG series enables precision manufacturing of complex geometries through high-precision grinding technology. For special groove profile requirements, ACHTECK can provide custom form tool solutions. Its three-edge design makes machining more cost-effective and efficient. With a rich range of width specifications, strong versatility and scalability, the series delivers higher profitability for customers.
Width (CW) range: 0.33 – 4.5 mm
Corner radius (RE) range: 0.05 – 2.0 mm
Maximum grooving depth (CDX): ≤ 5 mm

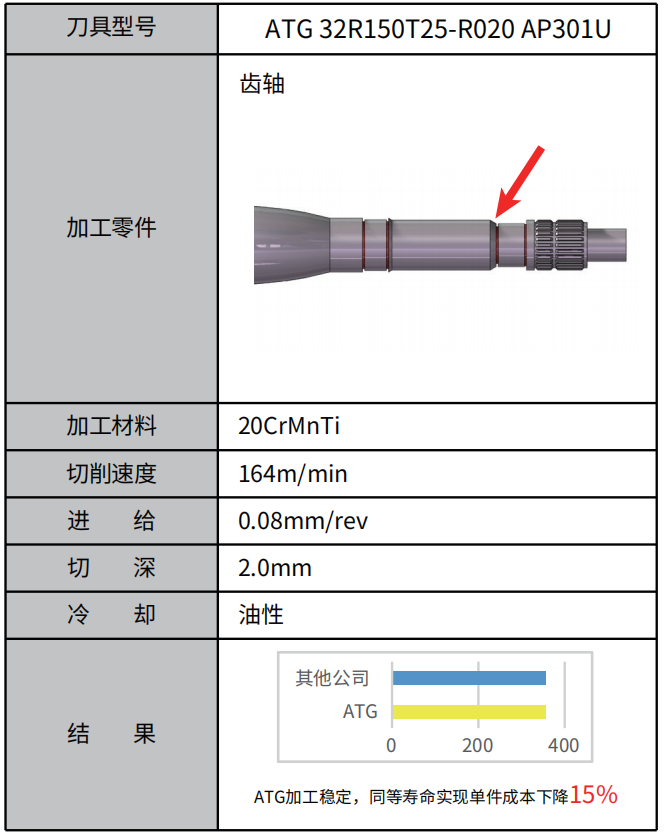

The series is suitable for external and internal shallow grooving as well as small parts machining scenarios.Key application industries: automotive, construction machinery, etc.
Precision-grade inserts

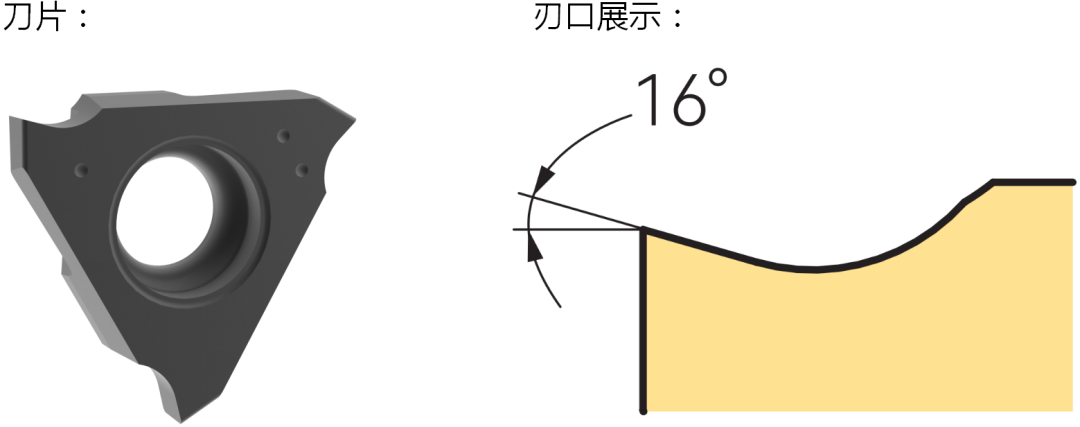

Positive rake angle minimizes machining vibration
Three-edge design with strong scalability
