New Product Launch | High-Pressure Coolant Tool Holder Series for Enhanced Tool Performance
To extend tool life, improve machining efficiency, and enhance chip breaking and control capabilities, ACHTECK Tools launches a brand-new series of high-pressure coolant tool holders, covering external turning tool holders as well as grooving and parting-off tool holders.

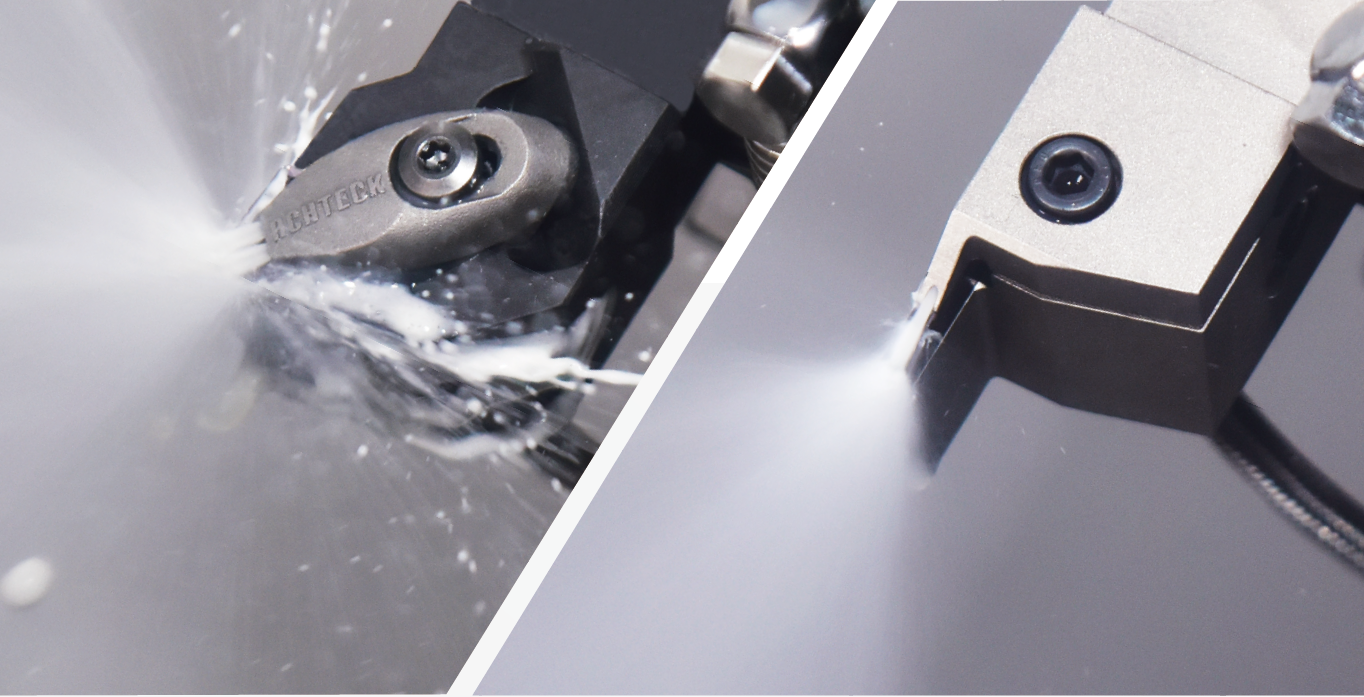

During the cutting process, coolant is sprayed onto both the rake and flank faces of the insert at a high pressure ranging from 7 MPa to 30 MPa via the machine tool's internal coolant system, delivering excellent cooling performance. It serves as an ideal solution especially for complex machining conditions.
PART 01 High-Pressure Coolant Series for External Turning
Enabled by high-pressure coolant technology, the newly launched external turning series achieves excellent chip breaking and temperature control effects when machining difficult-to-machine materials such as titanium alloys and superalloys, thus improving overall tool performance.
·Unique structural design
·Chip breaking performance comparison
▪Cutting parameters：Vc=280m/min，f=0.26mm/rev，ap=1.5mm，Wet
▪Workpiece material：4140 alloy steel
▪Insert model：CNMG 120408
·Wear resistance comparison
▪Cutting time：4.5min
▪Cutting parameters：Vc=90m/min，f=0.12mm/rev ， ap=0.4mm，Wet
▪Workpiece material：GH4169
▪Insert model：CNMG 120408 (external turning)
PART 02 High-Pressure Coolant Tool Holders for External Grooving and Parting-Off
Featuring an ingenious design, this series delivers coolant simultaneously from both the rake and flank face directions, enhancing chip breaking performance while enabling long tool life and stable machining.
·Unique structural design
·Wear resistance comparison
Internal coolant（7MPa） External coolant（0.4MPa）
▪ Cutting time: 16.7 min
▪ Cutting parameters: Vc = 220 m/min, f = 0.2 mm/rev, ap = 10 mm, wet cutting
▪ Workpiece material: 4340 alloy steel
▪ Insert model: ACD 202-CH AP301U (external grooving)
·Chip breaking performance comparison
Internal coolant（7MPa） External coolant（0.4MPa）
▪ Cutting parameters: Vc = 200 m/min, f = 0.12 mm/rev, ap = 10 mm, wet cutting
▪ Workpiece material: 4340 alloy steel
▪ Insert model: ACD 202-CH AP301U (external grooving)
Going forward, we will launch more specialized cutting tools with higher efficiency, higher precision and higher reliability to meet the strict requirements of machining customers for machining accuracy, efficiency, environmental protection and energy conservation. Stay tuned for more updates.
