New Product Launch | Breaking the Boundaries of Efficiency and Precision to Empower Your Thread Machining
In precision manufacturing scenarios, thread machining is a critical process that determines overall production efficiency and product quality. Facing increasingly complex workpiece materials and continuously rising machining requirements, to meet the industrial demand for high-efficiency, reliable thread machining, ACHTECK Tools launches two professional-grade tap series: the T102/T103 HSS cutting taps and the T190 cemented carbide forming taps.
PART 01 T102/T103 HSS Cutting Taps
Product Details
◾Material Properties
Made of cobalt-containing high-speed steel (HSS-E), the taps combine excellent hardness, toughness and wear resistance, suitable for high-strength continuous machining operations.
◾Coating
Equipped with AlCrN coating, which features outstanding wear resistance, anti-adhesion performance and high-temperature stability, effectively extending tool service life.
◾Product Types
T102 spiral point tap: Type A chamfer (5 threads). Designed with a sharp cutting rake angle and low axial force, it significantly improves the efficiency and precision of through-hole machining.
T103 spiral flute tap: Type C chamfer (2.5 threads), with a 40° helix angle and optimized spiral flute design for smooth chip evacuation. Specially engineered for blind-hole machining, it effectively prevents chip clogging.
◾Diameter Range
M3-M16
Convex point design for sizes M6 and below, concave point design for sizes above M6, covering all commonly used thread specifications.。
◾Standards Compliance
Strictly manufactured in compliance with DIN and JIS standards, ensuring global versatility and process compatibility.
◾Applications & Scope
Suitable for various working conditions, including CNC machining centers, radial drilling machines, horizontal lathes and more.
Applicable to common ISO material groups: P, M, K, N.
Widely used in automotive components, general machining, construction machinery and other industries.

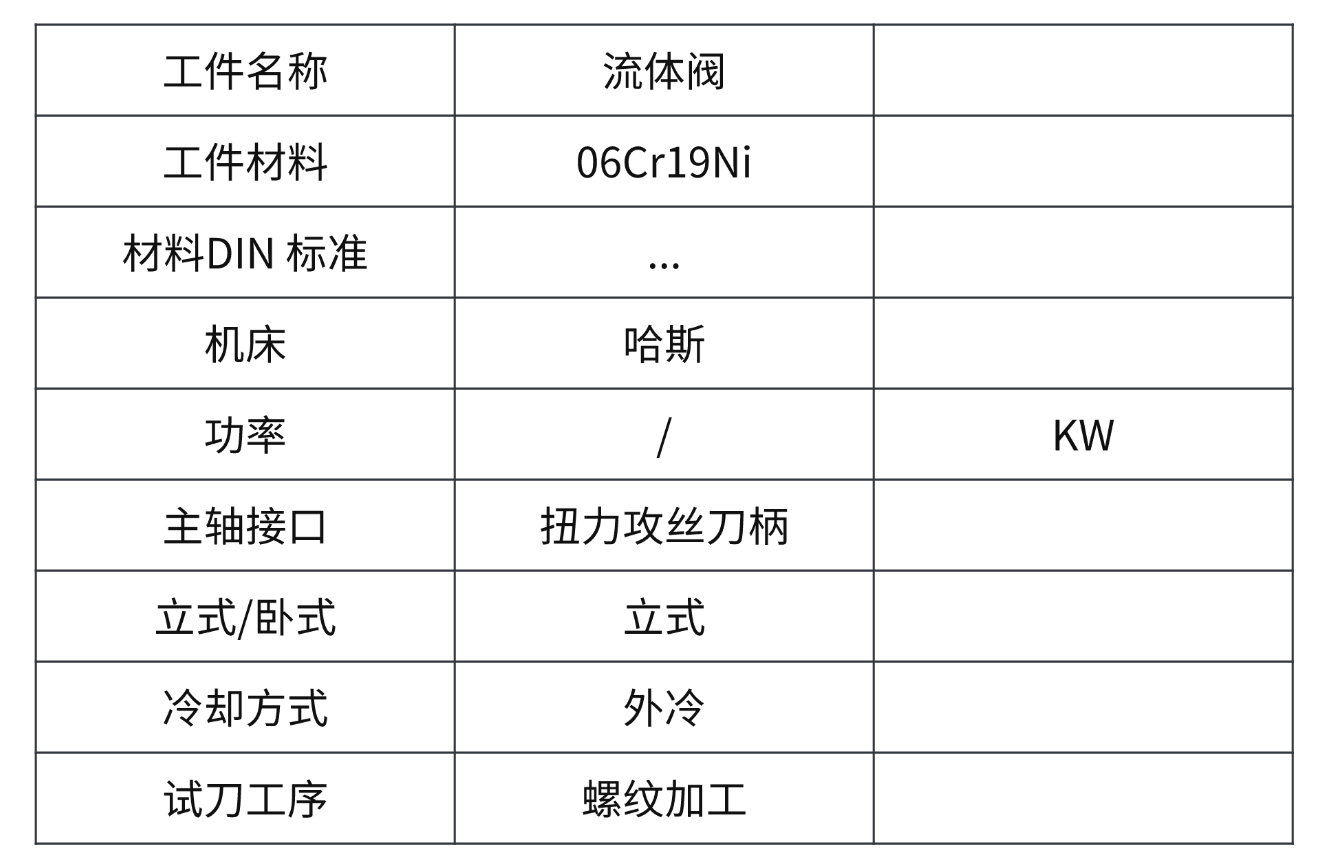

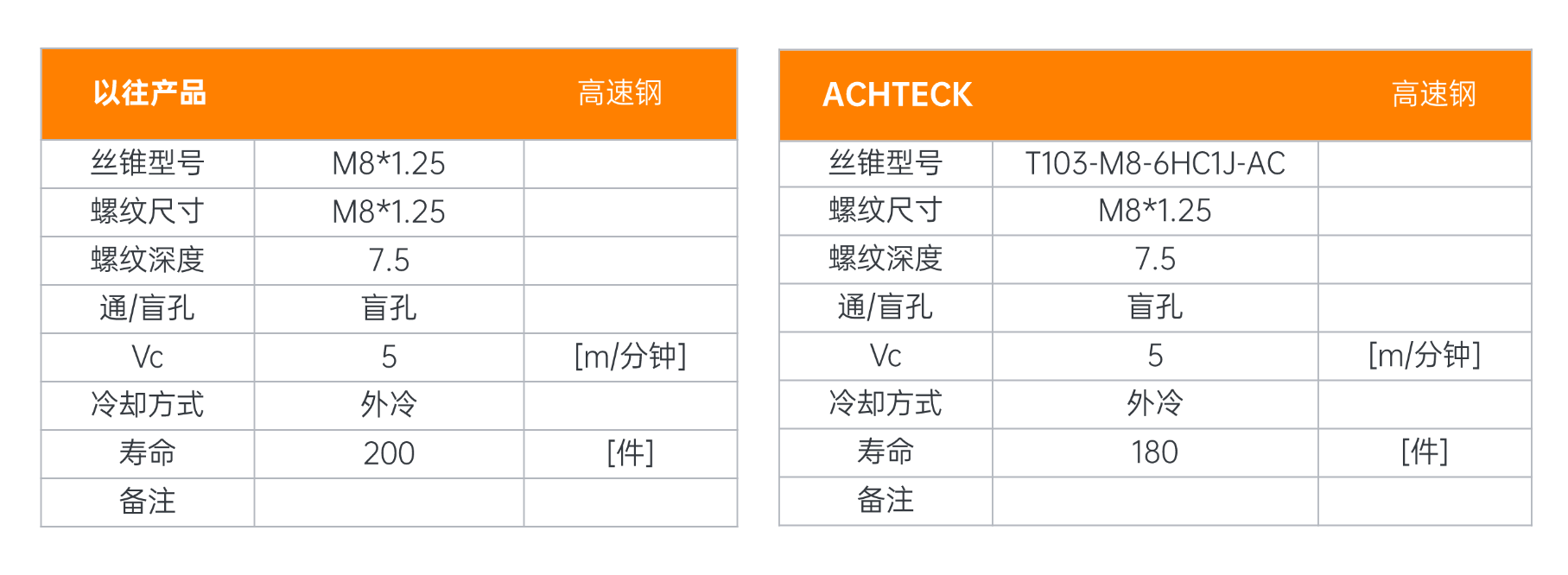

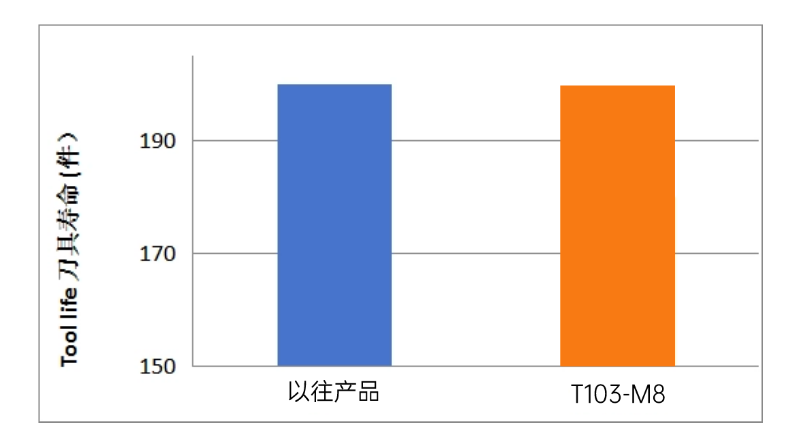

Case Study
Case conclusion：
⏩ 40% reduction in machining cost at the same machining efficiency

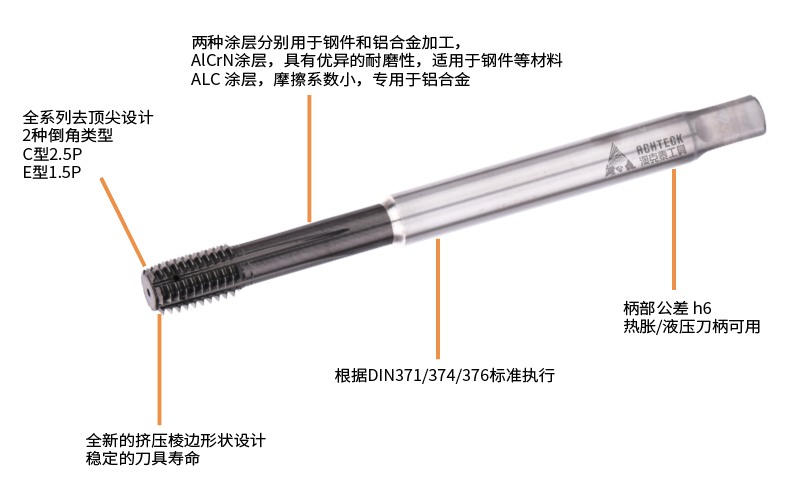

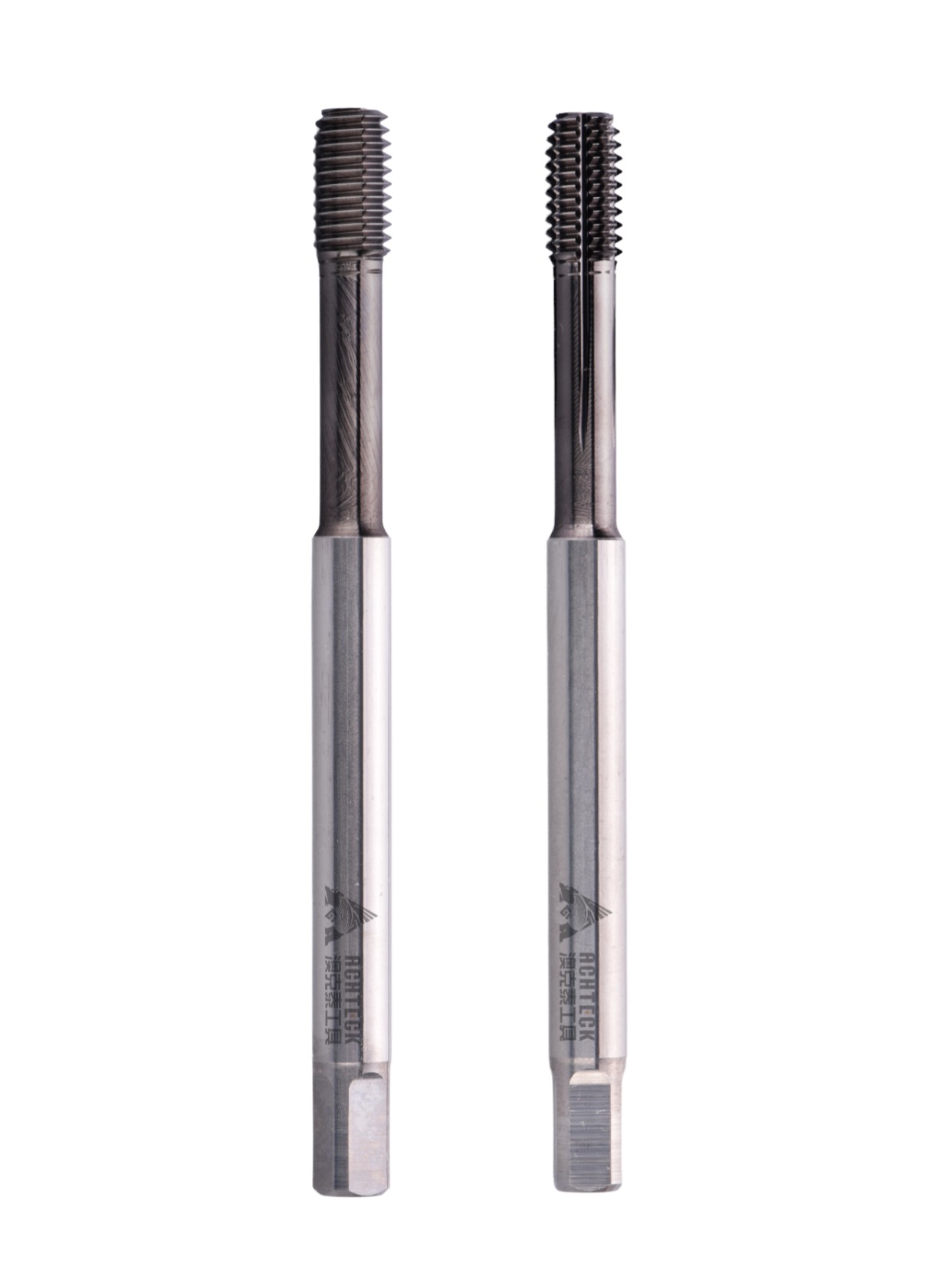

PART 02 T190 Cemented Carbide Forming Taps
Product Details
◾Material Properties
Adopts a high-hardness cemented carbide substrate, specially designed for high-wear, high-load working conditions.
◾Coatings
AC (AlCrN) coating: delivers exceptional wear resistance, anti-adhesion performance and high-temperature stability, extending tool service life.
AL (ALC) coating: features an ultra-smooth surface and low friction coefficient, specially developed for aluminum alloy materials.
◾Process Advantages
Chip-free cold extrusion forming technology completely eliminates chip evacuation issues. Suitable for both through and blind holes, it is ideal for ductile materials, thin-walled parts and applications with strict requirements on thread surface quality, while simultaneously improving thread strength and surface finish.
◾Product Types
Four coolant configurations available: external coolant without oil groove, external coolant with oil groove, axial internal coolant, and radial internal coolant, to adapt to different thread specifications and working conditions.
Type C and Type E chamfers, with a full-series point-less design to maximize effective thread depth.
◾Diameter Range
M5-M20
◾Standards Compliance
Manufactured in accordance with DIN 371 / 374 / 376 standards.
◾Applications & Scope
Suitable for machining ISO material groups: P, M, K, N.
Applicable to automotive components, general machinery, construction machinery and the energy industry.
Typical components: crankshafts, connecting rods, motor shafts, flanges, hub bearings.

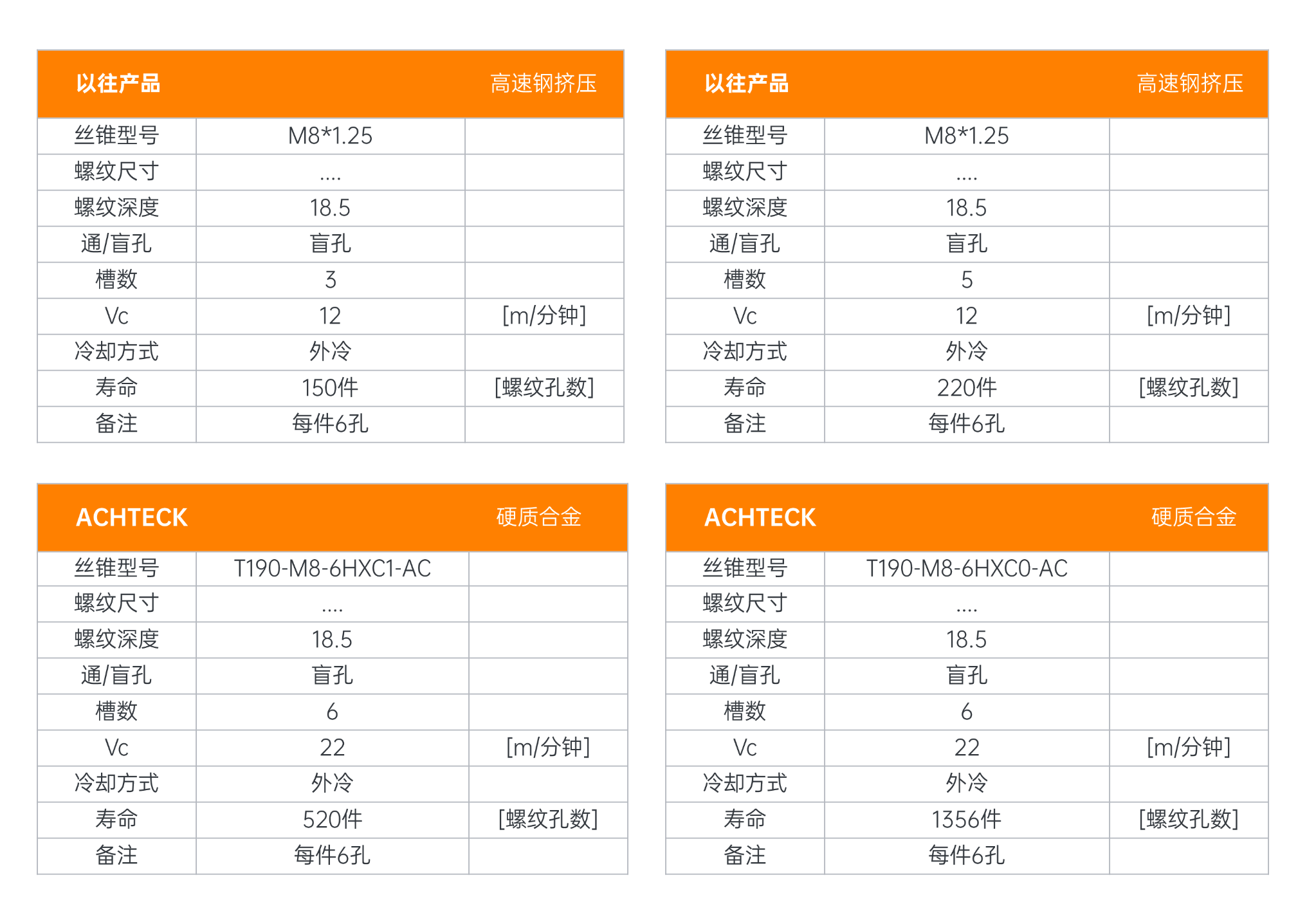

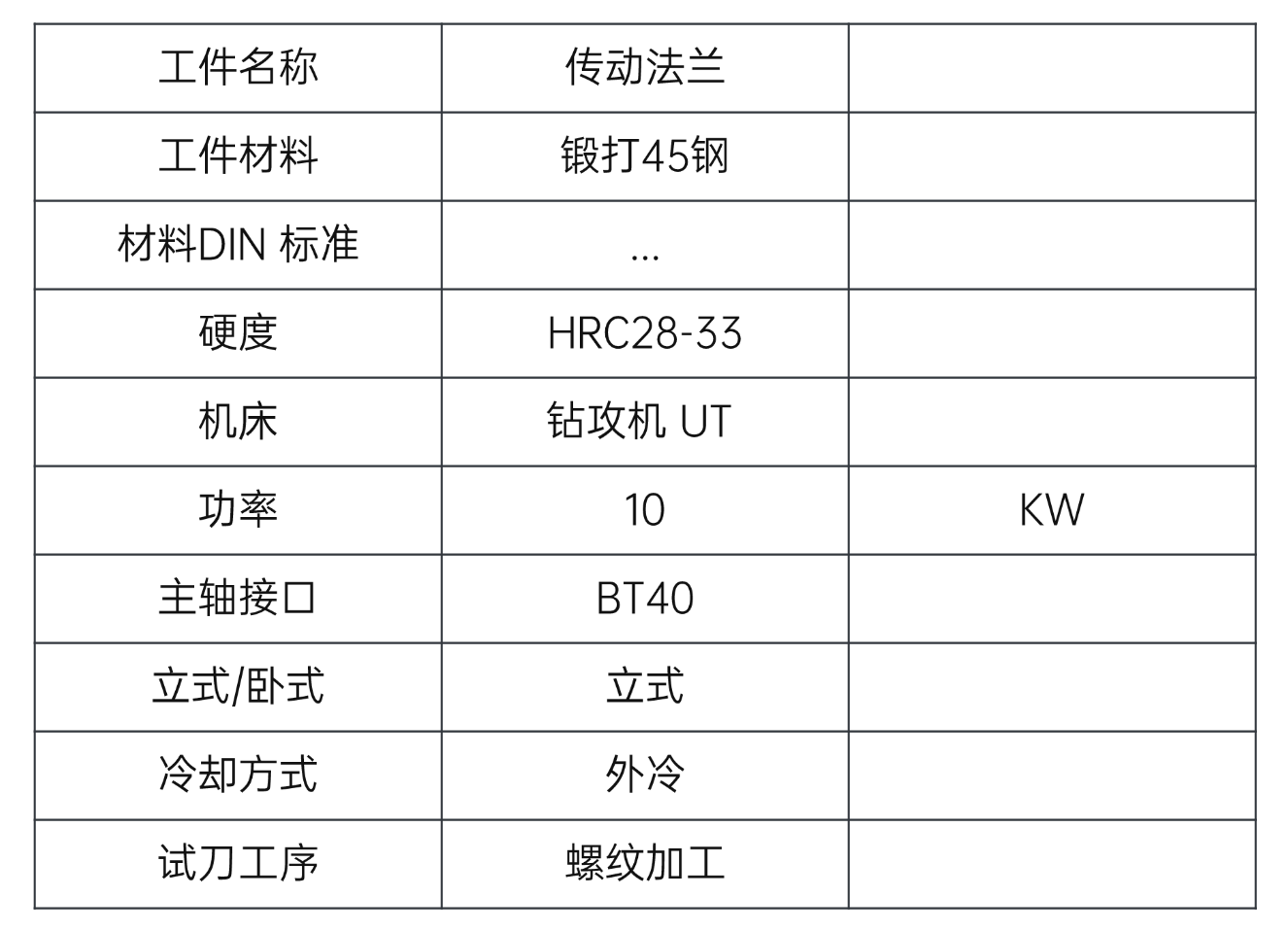

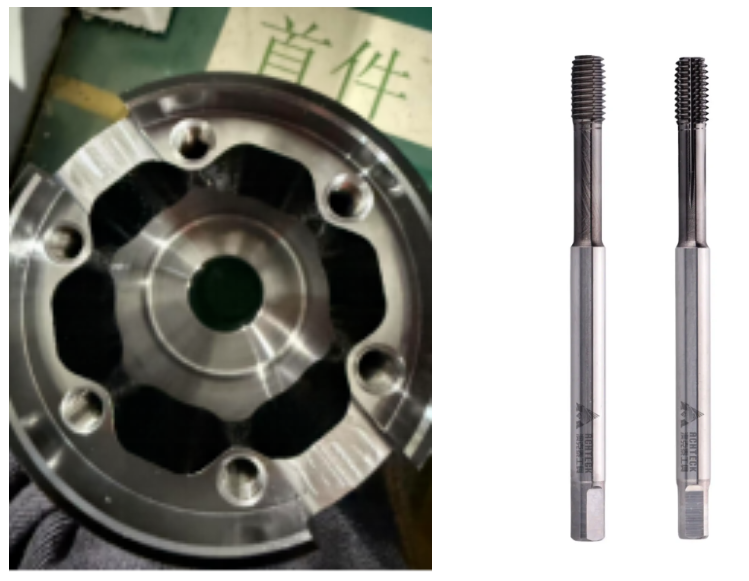

Case Study
Case summary:
⏩ 83% improvement in machining efficiency
⏩ 516% increase in tool life
Going forward, we will launch more specialized cutting tools with higher efficiency, higher precision and higher reliability to meet the strict requirements of machining customers for machining accuracy, efficiency, environmental protection and energy conservation. Stay tuned for more updates.
