New Product Launch | AP100U New Grade for Small Parts Machining
To address the common demand for mixed-material production lines in small parts machining, as well as higher expectations for machining efficiency and tool durability amid intense market competition, ACHTECK Tools launches the new AP100U grade. Designed for machining scenarios of steel, stainless steel and superalloys, this grade effectively improves machining efficiency and extends tool service life.
Grade Features
The substrate made of ultrafine tungsten carbide combines high hardness with excellent toughness. Paired with a smooth-surface nano-composite coating, it is ideally suited for grinding sharp cutting edges and applied to the finishing of small precision parts.

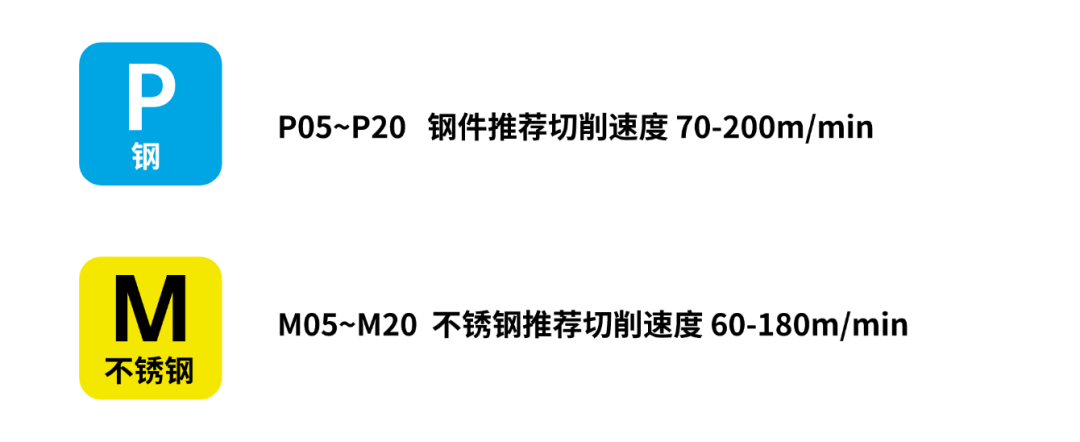

➡ Recommended Cutting Speed：
Comparison Tests

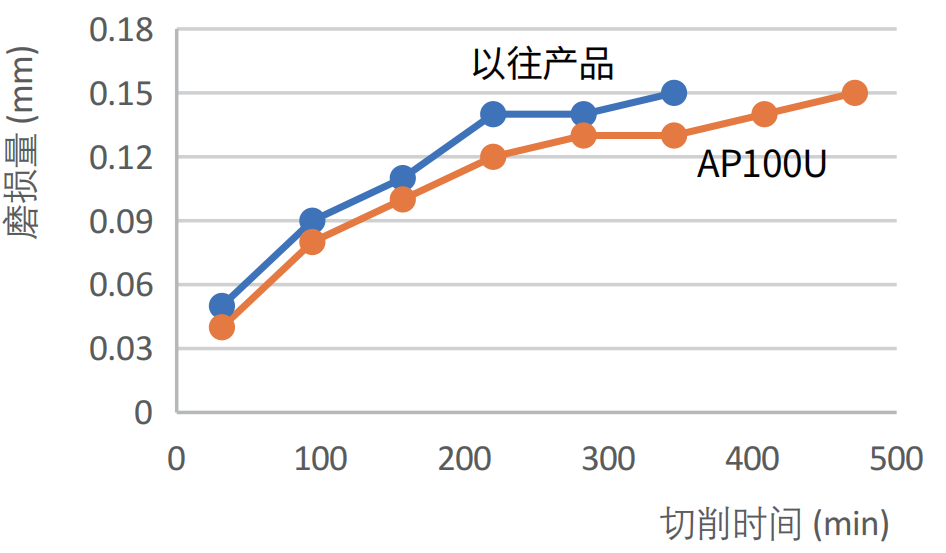

➡ Turning
▪Insert model: DCET 11T302FR-F AP100U：
DCET 11T302FR-F AP100U
▪Cutting conditions：
Workpiece material: 4140,Vc=120m/min
ap=0.3mm,f=0.05mm/rev,wet

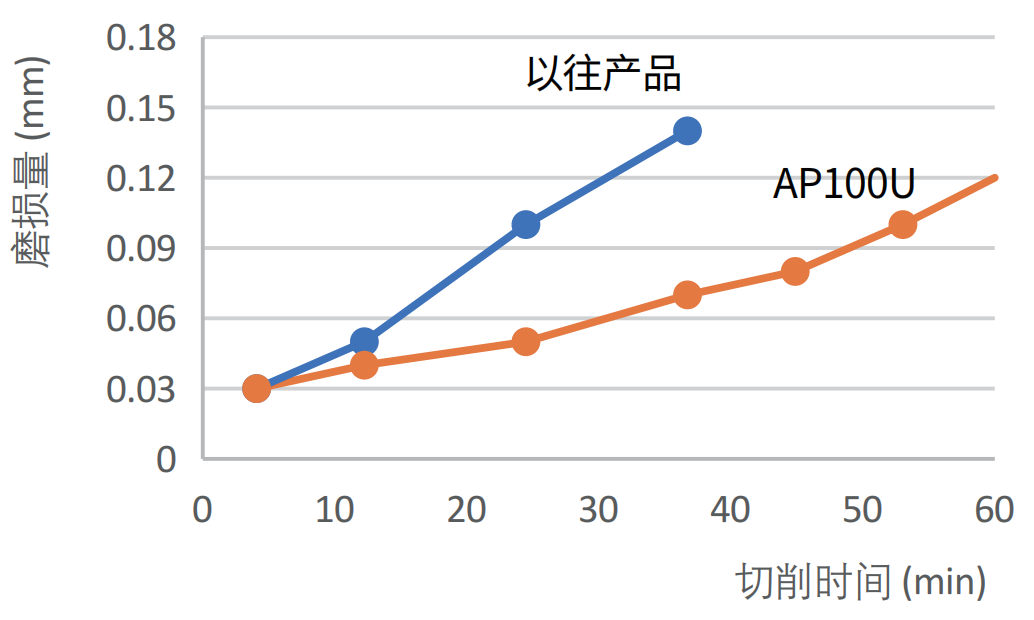

➡ Grooving
▪Insert model：
ASG 32R100T20-R010 AP100U
▪Cutting conditions：
Workpiece material: 4140,Vc=120m/min,
ap=1.5mm,f=0.03mm/rev,wet

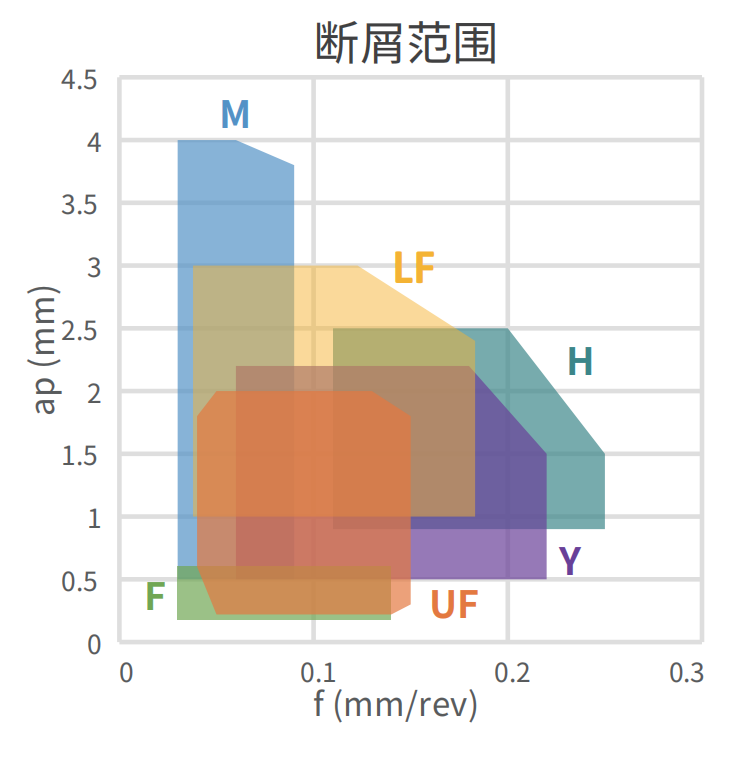

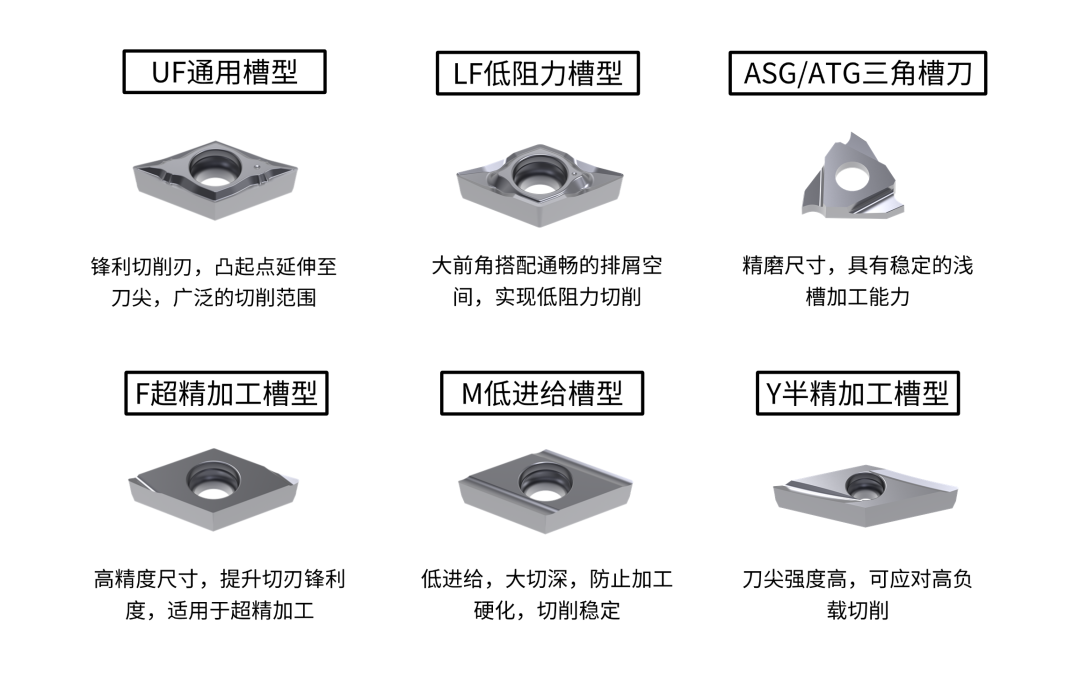

Compatible Chip Breaker Profiles

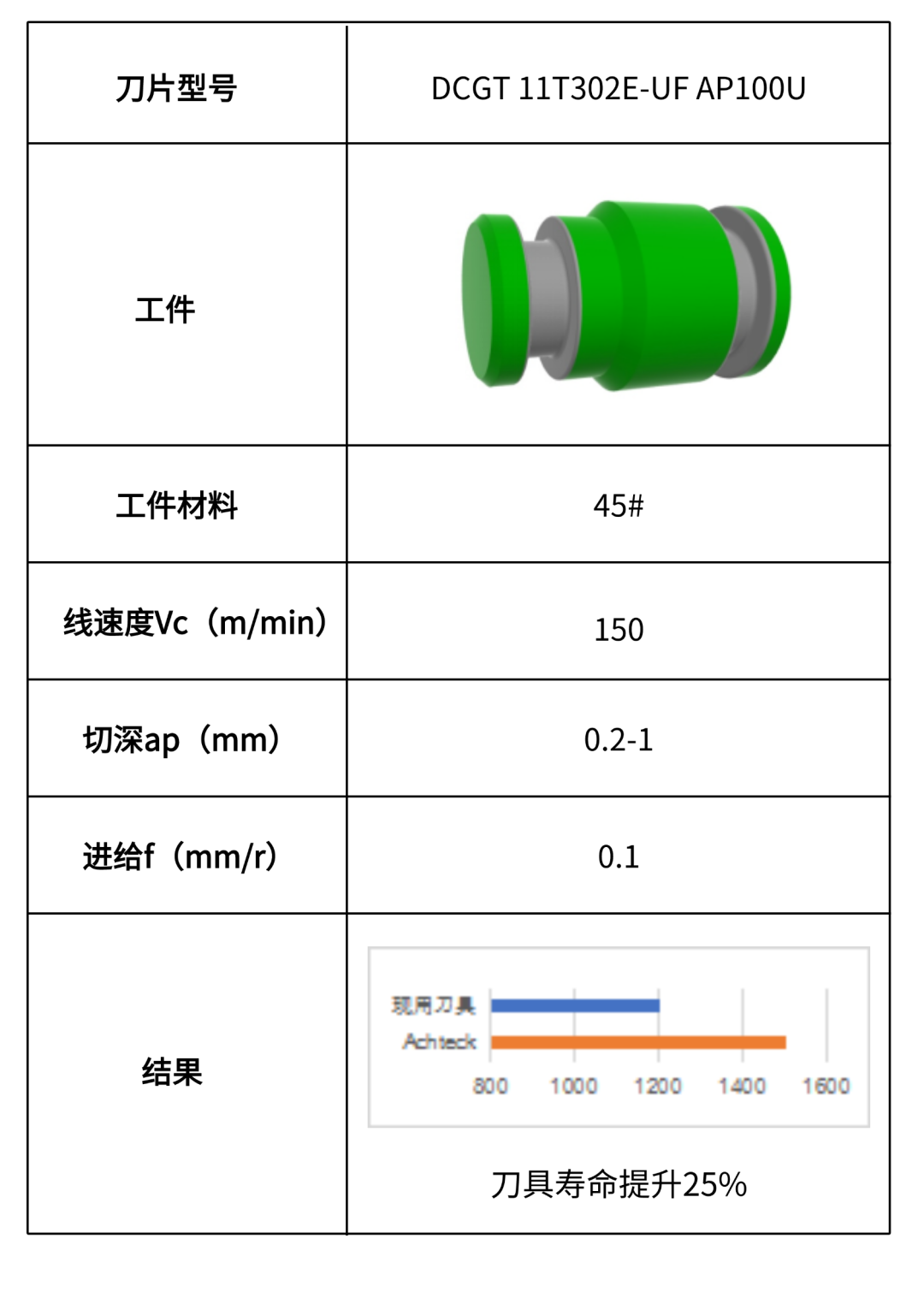

Success Cases
