New Product Launch | M160 – ACHTECK PRO Series Cemented Carbide Milling Cutters: The Cutting Expert for Superalloy Materials
In high-end manufacturing sectors such as aerospace and energy, materials like superalloys and titanium alloys have always been the ultimate test for cutting tool performance. Boasting excellent high-temperature strength, oxidation resistance and creep resistance, they are the preferred materials for key component manufacturing — yet these same properties also make them typical difficult-to-machine materials.
After years of dedicated R&D and repeated testing, ACHTECK Tools officially launches the M160 milling cutter series. Specially engineered for high-efficiency machining of heat-resistant alloys, superalloys and titanium alloys, the M160 series delivers an optimized milling solution for difficult-to-machine materials.
Product Introduction
Product Specifications
ACHTECK PRO Series
Metric sizes, 4 tool types, 43 product models
Cutting edge diameter range: 5–20 mm
4 cutting edges per tool, available with corner chamfer or corner radius
Application Scope
Suitable for machining ISO material groups: P, M, S
Core application industries: aerospace and energy
Milling applications: shoulder milling, slot milling, pocket milling, helical interpolation milling, dynamic milling
Product Features
Purpose-built for machining heat-resistant alloys, superalloys and titanium alloys

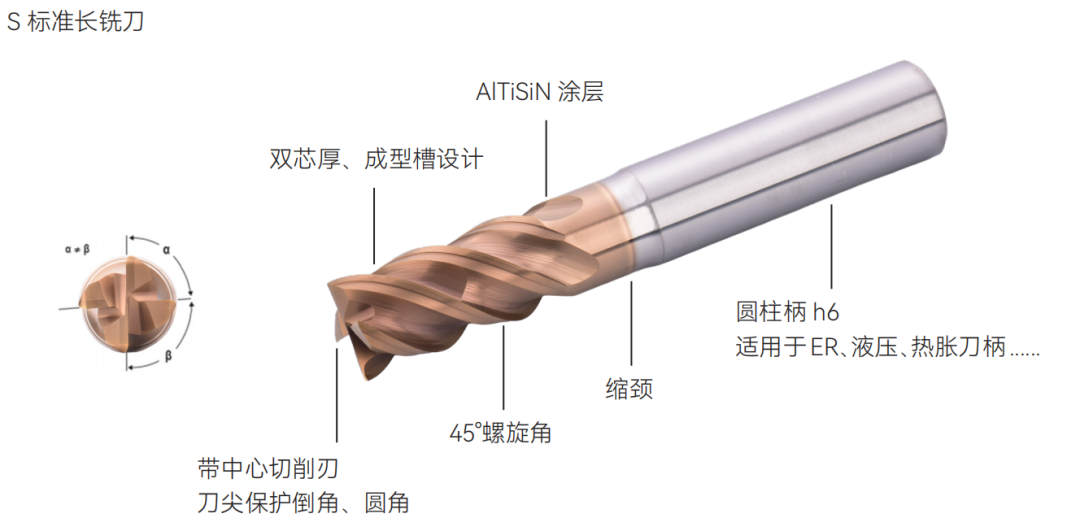

4-flute unequal pitch and 45° helix angle design effectively suppresses machining vibration and improves workpiece surface finish
Double core thickness and formed flute design balances chip evacuation capacity and tool rigidity, optimizing chip guidance and discharge

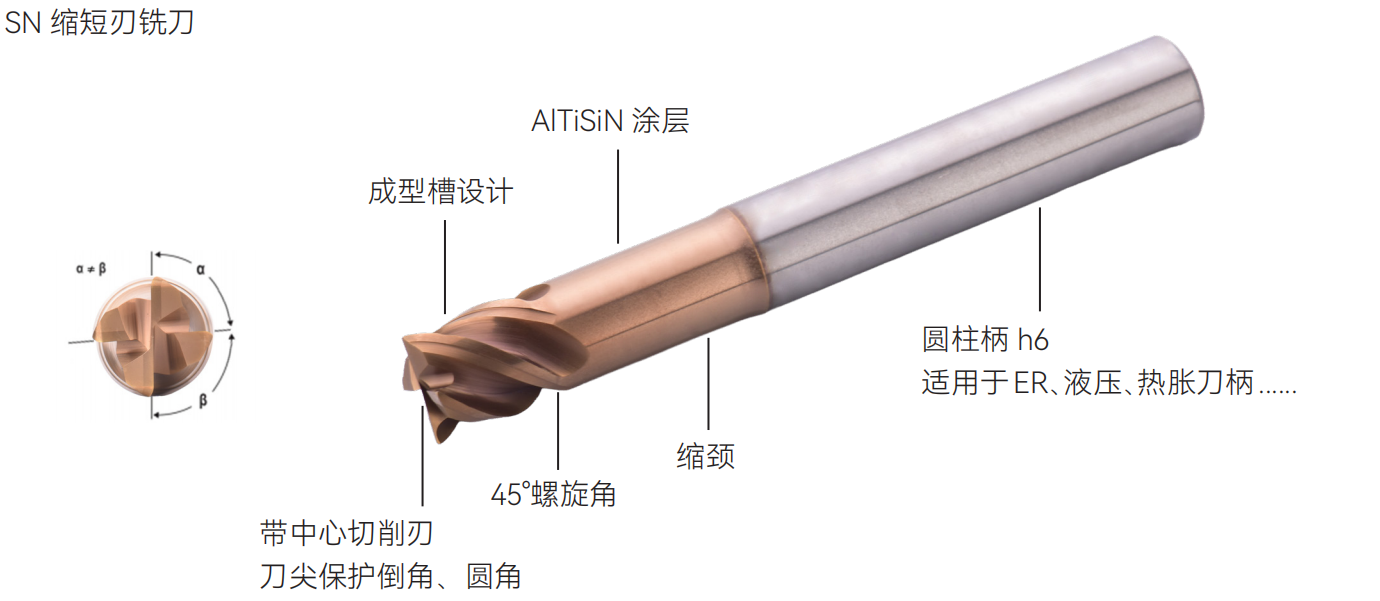

Reduced neck structure suitable for pocket and side wall machining
Customizable configurations available to meet customer-specific requirements

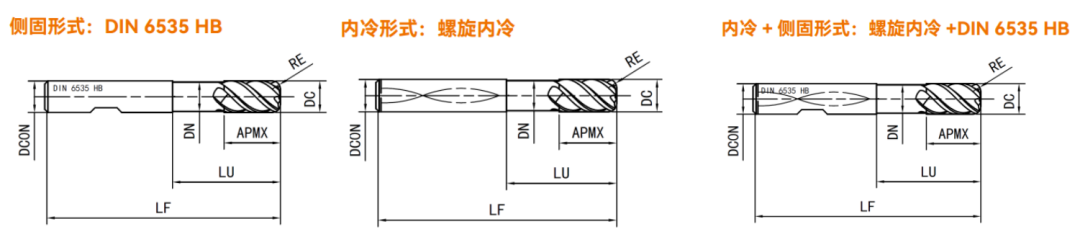

Available in side lock and internal coolant versions
Case Studies

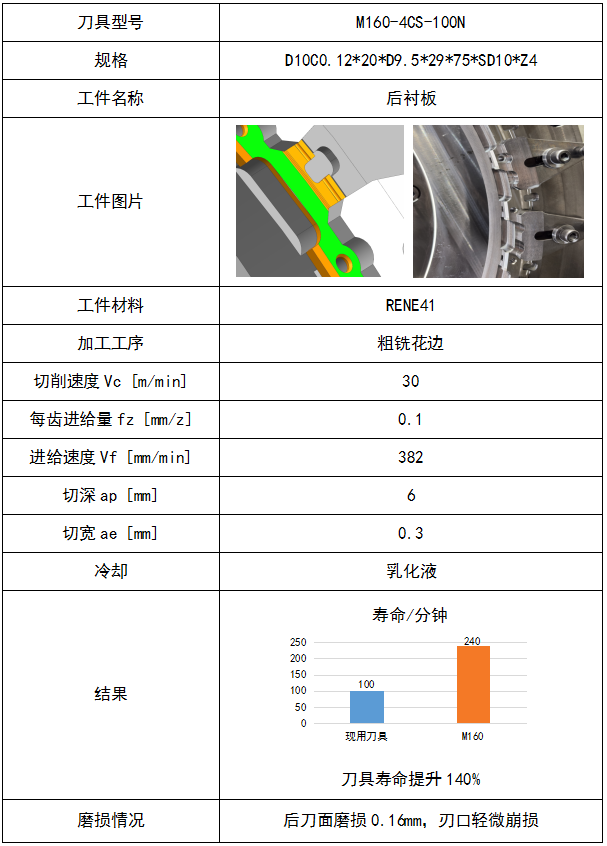

Case 1：

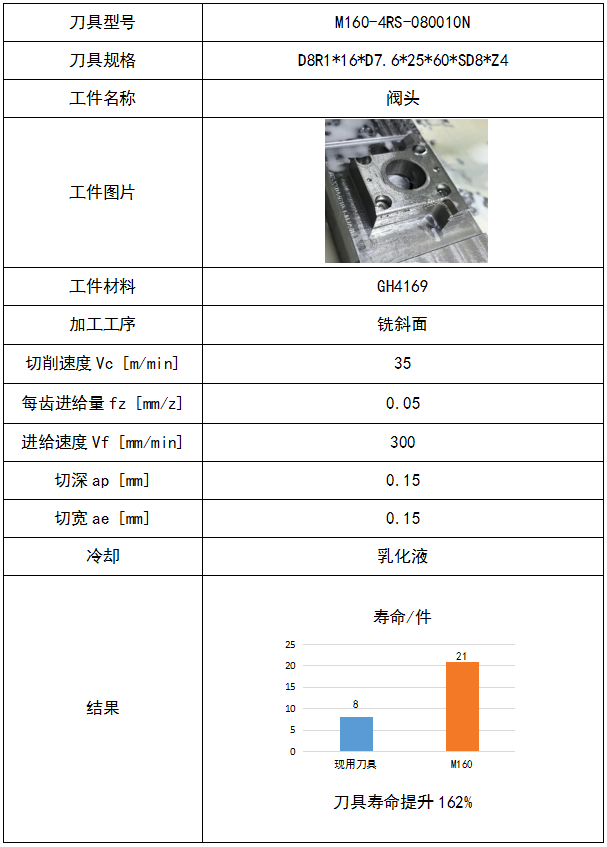

Case 2：
