New Product for High-Hardness Material Milling: AP153H Grade

Currently, the demand for machining high-hardness materials such as hardened steel and cast iron continues to rise in mold manufacturing, machining and other sectors, along with increasingly stringent requirements for machining accuracy, production efficiency and cutting stability. In the milling of hardened steel, quenched materials, nodular cast iron and gray cast iron, common industry pain points include frequent insert chipping, severe tool wear and high-temperature-induced coating failure. Traditional tool grades can barely strike a balance among wear resistance, chipping resistance and machining stability, which has become a core bottleneck restricting the efficient machining of high-hardness materials. To address this challenge, ACHTECK Tools officially launches the AP153H, a specialized grade for high-hardness material milling. Backed by innovative substrate preparation and coating structure design, it delivers an efficient, stable and durable professional solution for high-hardness material milling.

1. Insufficient hardness of tool materials fails to complete part machining.

2. CBN tools incur high machining costs, and some machining methods such as milling lack suitable tool options.

3. Excessively fast tool wear leads to unstable machining quality. When cutting high-hardness materials, tools are highly prone to flank wear, which causes gradual degradation of surface quality and dimensional deviation during machining. Frequent downtime for adjustment or tool change disrupts machining consistency and delays delivery schedules.

4. Concentrated cutting heat easily triggers tool failure. Poor thermal conductivity of high-hardness materials causes massive heat accumulation at the cutting edge, which may result in coating peeling, substrate softening and even edge chipping, making sustained and stable machining difficult.

5. Difficulty in balancing machining efficiency and tool life. High-hardness materials usually require conservative cutting parameters, resulting in low machining efficiency. Blindly increasing speed and efficiency will in turn cause rapid tool wear or workpiece burning, making it hard to find a stable window that balances efficiency, tool life and quality.

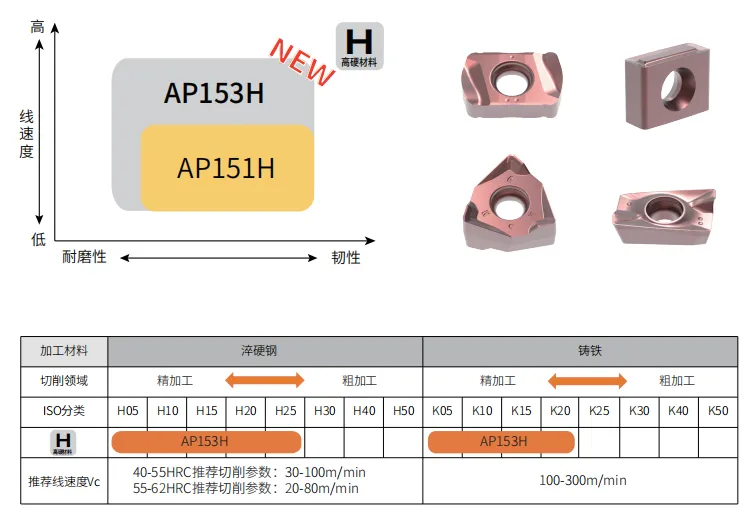

1. Launch of AP153H, a dedicated milling grade for high-hardness materials, covering a machining hardness range of 45–62 HRC.

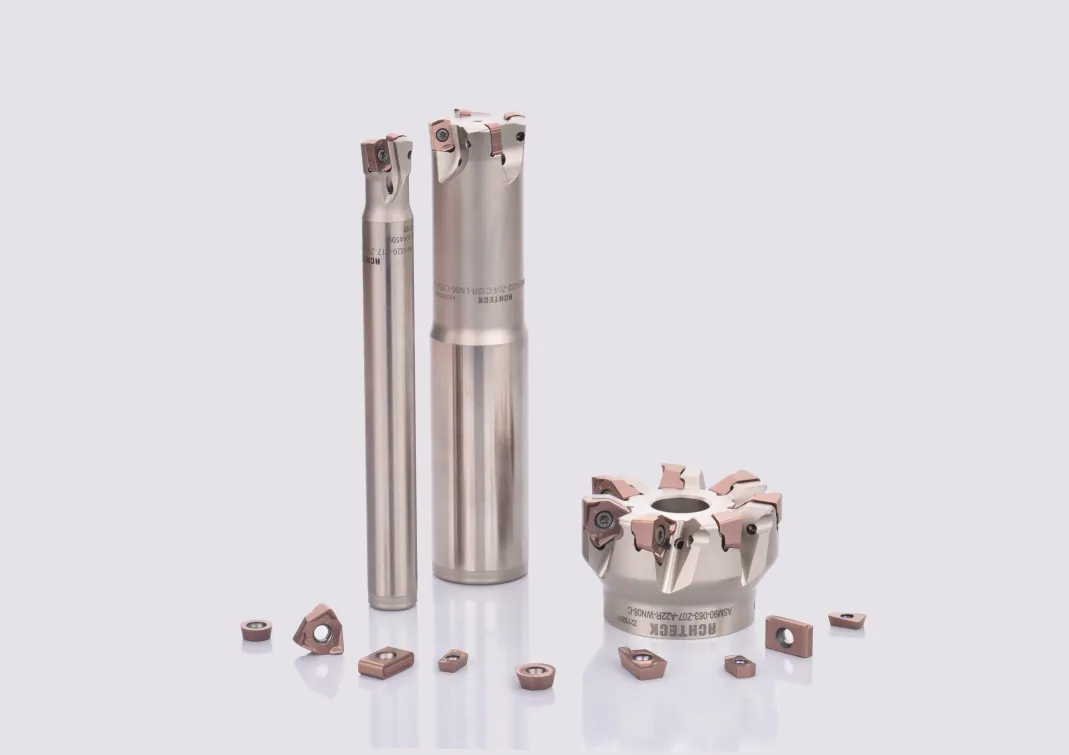

2. Applicable to all common milling scenarios, including shoulder milling, profile milling, high-feed milling and face finishing.

3. The brand-new grade can effectively extend insert life by around 30%, reduce tool change frequency, improve surface quality and help customers cut costs.

4. A variety of dedicated chip breaker profiles are available to adapt to different machining stages from roughing, semi-finishing to finishing. While enhancing chip control capability, they reduce cutting force, lower the risk of tool chipping and improve process safety.

5. Working condition-based selection recommendations and parameter optimization solutions are provided to help customers quickly match the optimal cutting conditions, shorten debugging time, and maximize the balance between tool life and machining efficiency.

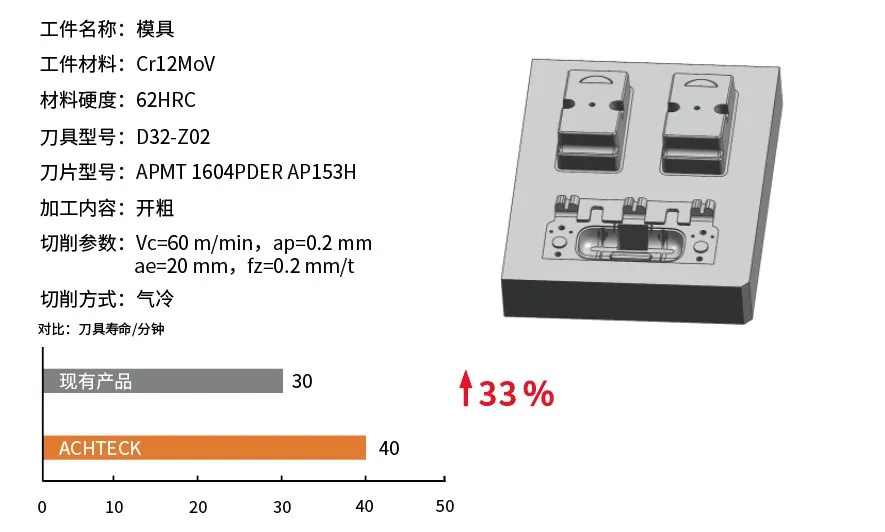

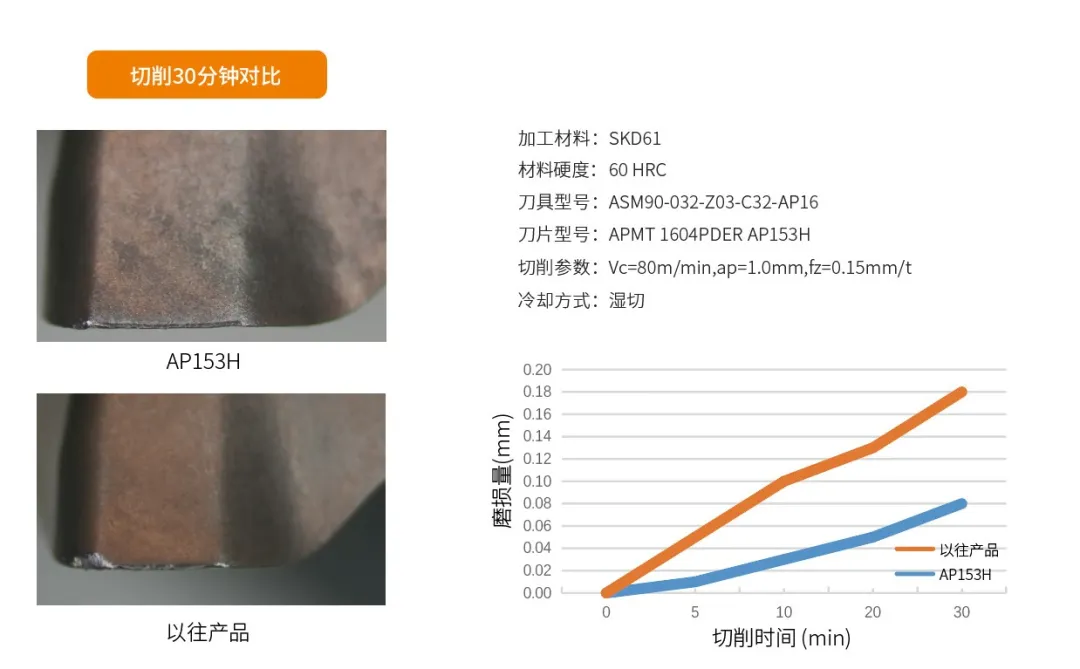

In practical applications, the AP153H delivers outstanding performance. In die roughing of high-hardness materials such as SKD61 and Cr12MoV (workpiece hardness 55–62 HRC), its tool life far exceeds existing products. It effectively improves machining stability and workpiece accuracy, reduces tool change frequency, lowers production costs and creates higher machining value for customers.

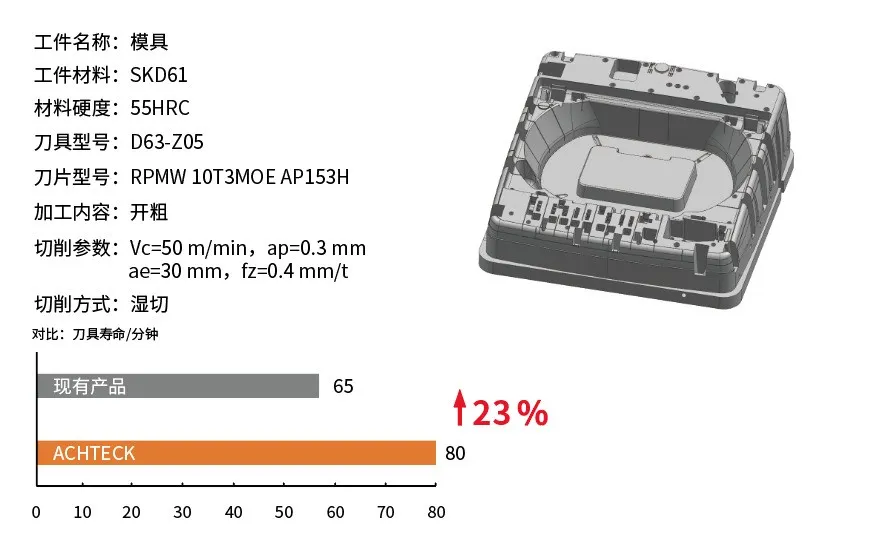

Conclusion: The AP153H grade delivers 23% better performance than the customer’s current inserts, effectively reducing tool change frequency. The customer reports approximately 15% savings in tooling costs. Meanwhile, machining resistance is reduced by around 15% compared with existing products, and cutting noise is also significantly improved.

结论：AP153H牌号比客户现有刀片性能提升33%，客户反馈刀具成本节约20%左右。同时工件表面光洁度得到了提升，为客户降本增效提供了一个非常好的改善方案。
