New Product Spotlight | AHM10-XO09/12 High-Feed Milling Cutter: A New High-Efficiency Solution for Aerospace & Energy Machining
AHT Tool proudly introduces the all-new AHM10-XO09/12 Series high-feed milling cutters, specifically engineered to address the challenging cutting demands of difficult-to-machine materials in high-end manufacturing sectors such as aerospace and energy. Featuring a 10° small entering angle combined with dedicated insert geometries and grades, the series delivers high-efficiency machining characterized by high metal removal rates, low vibration, and exceptional stability. It is ideally suited for typical roughing operations requiring shallow depths of cut and high feed rates.
Leveraging the chip-thinning effect, the 10° entering angle enables high feed per tooth (fz) at shallow cutting depths (ap), delivering high table feed (vf) and significantly increased metal removal rates – substantially reducing roughing cycle times.
Designed for the high-feed milling logic of shallow ap and high fz, this solution perfectly meets the high-efficiency roughing demands of aerospace structural parts and energy-sector superalloy components.
Cutting forces are directed primarily along the spindle axis (the stiffest direction of the machine), drastically reducing radial forces to minimize deflection, vibration, and chatter at the source – particularly suited for long overhang and low-rigidity setups.
Uniform axial load distribution extends tool and spindle life, ensuring consistent dimensional accuracy and surface quality in complex and deep cavity machining.

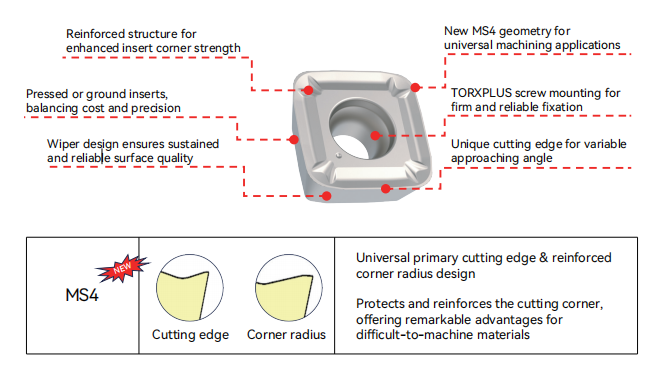

Optimized cutting edge geometry and chip flow channels for titanium alloys, superalloys, and precipitation-hardening stainless steels – reducing built-up edge, adhesion, and work hardening.
Reinforced cutting edge balances sharpness with chipping resistance for high-feed, high-strength cutting, ensuring stable continuous machining.
High-performance carbide substrate + specialized coating deliver superior hot hardness, wear resistance, and thermal shock resistance – capable of withstanding cutting temperatures exceeding 700°C.

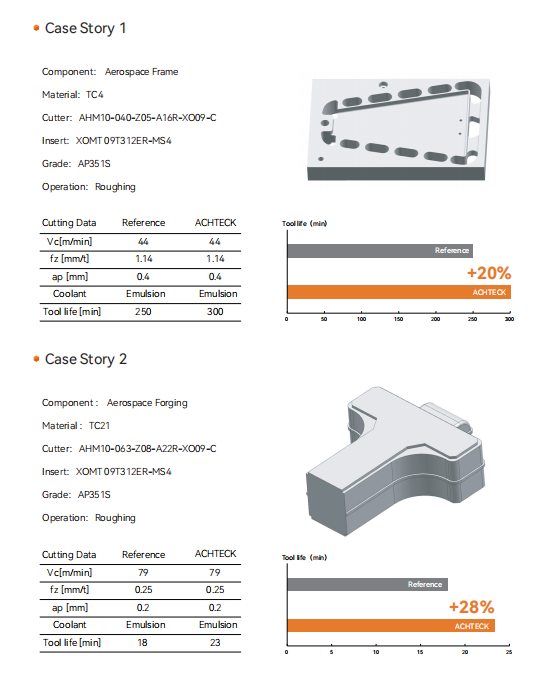

Optimized for aerospace and energy materials, tool life is extended by approximately 20% over general-purpose inserts – reducing tool change frequency and overall costs.
High-efficiency rough milling of frames and beam-type components;
Roughing of superalloy/titanium alloy parts such as turbine discs, blades, and casings;
Plunge milling and helical interpolation for complex and deep cavities – suitable for 3/5-axis machining centers.
Superalloy machining of gas turbine and steam turbine blades/impellers;
High-efficiency roughing of critical structural components for wind and nuclear power;
Milling of difficult-to-machine materials for petrochemical high-pressure vessels and pipelines.
XO09/XO12 – two sizes available, covering cutter diameters from φ32 to φ80 to meet mainstream machining requirements.

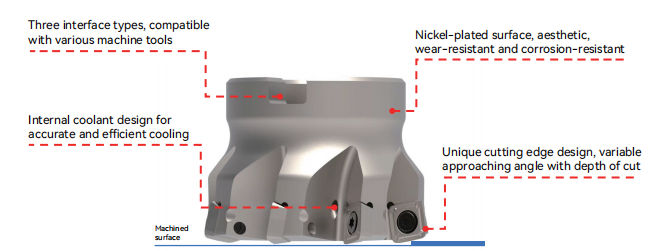

Cutter Features:
Nickel-plated anti-corrosion coating and internal coolant supply for effective cooling and chip evacuation at high speeds and high feed rates; positive axial rake angle for smoother cutting action.
Core Values:
Application Flexibility: Versatile applicability across multiple machining functions – significantly reducing tool variety and simplifying inventory management.
Superior Performance: Innovative design and materials enhance insert strength while reducing axial forces, ensuring longer tool life even in unstable machining conditions.
Efficiency Leadership: High metal removal rates help shorten cycle times per part and improve machine utilization.
Cost Optimization: Reduced tool change frequency and lower resource consumption at the same material removal and machining efficiency levels.
