Passenger vehicle cylinder blocks and heads are typically made of cast aluminum alloy, while commercial vehicle cylinder blocks remain primarily cast iron. These materials have low hardness, are prone to built-up edge (BUE) formation, and produce high levels of burrs. Machining processes are characterized by long cycle times, numerous dimensional features, and components sensitive to temperature changes, with critical bores requiring high dimensional accuracy and strict CPK (Process Capability Index) compliance. Primary operations include face and hole machining, with additional requirements for knurling and bimetal machining. Driven by extreme efficiency demands, a wide range of custom composite tools are used to support high-volume, automated production.
-
-
- Watch Case
- Lens Ring
- Industrial Lens Mount
- Joint Components - Femoral Part
- Joint Components - Tibial Tray
- Joint Components -Femoral Stem
- Trauma Components - Bone Plate
- Cervical Spine Components - Pedicle Screw Dovetail Head
- Joint Components - Acetabular Cup Machining Solution
- Joint Components - Femoral Cap
Tooling Solutions for Aluminum Alloy Cylinder Block & Cylinder Head Machining

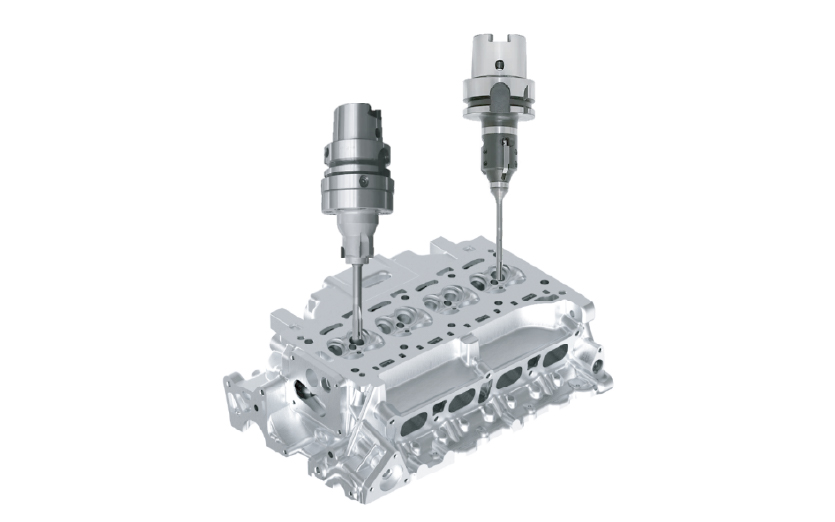

Valve Guide & Seat Machining
Achteck Custom Composite Tool
Custom-designed to customer specifications.
Monolithic design ensures coaxiality of the bores.
Seat ring inserts are individually adjustable to ensure the position and roundness of the sealing face machining.
Achteck Custom Composite Tool

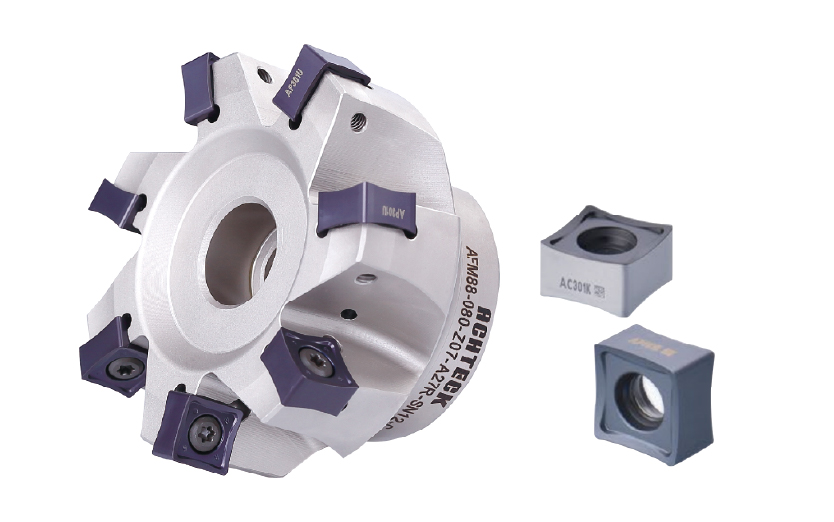

Rough Machining of Top, Bottom and Peripheral Faces
Achteck AFM88-SN12 Series Face Milling Cutters
Covers hole diameter range D50-D315.
Double-sided 8 cutting edges, with a maximum depth of cut of 10mm.
Available with AW100K grade specifically for aluminum alloy machining.
Achteck AFM88-SN12 Series Face Milling Cutters

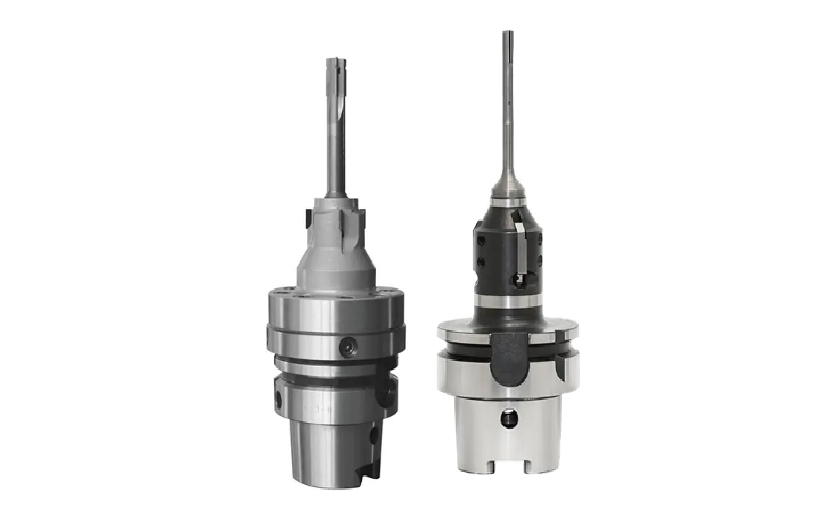

Valve Seat Ring Tools
Valve Seat Ring Tools
Customizable dimensions and configurations.
Multiple dimensions machined in a single operation for high efficiency and dimensional stability
PD and PB series inserts offer both wear resistance and impact resistance.
Delivers exceptional tool life.
Valve Seat Ring Tools

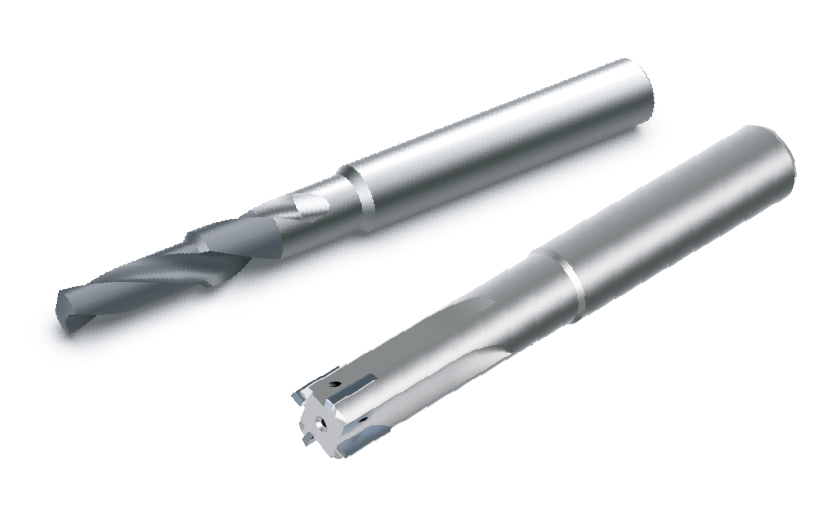

Hole Machining
Achteck Custom Step Drills and PCD Reamers
Complete drilling and chamfering in a single operation.
Tool body with dual internal coolant holes for optimized cooling and chip evacuation.
Semi-custom reamers offer short lead times with customizable diameters.
PD10 diamond material ensures high machining efficiency and excellent wear resistance.
Achteck Custom Step Drills and PCD Reamers

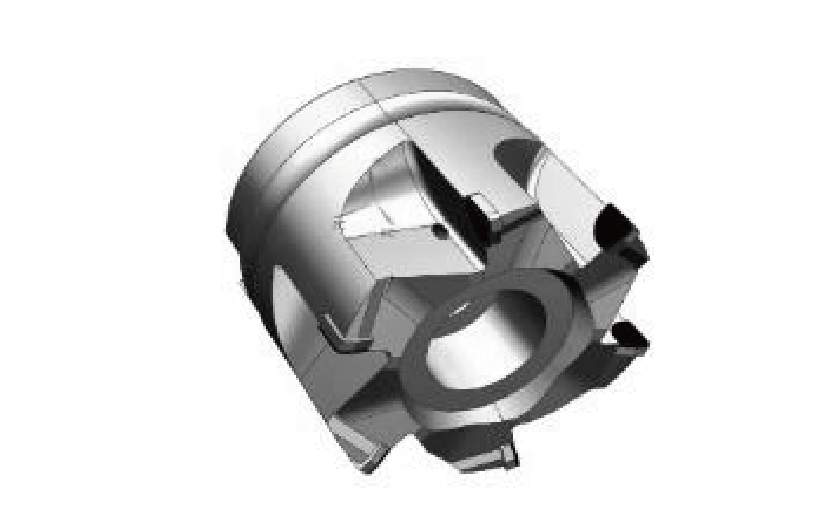

Peripheral Face Finishing and Knurling Operations
Achteck Brazed PCD Face Milling Cutters
Cutting edges directly meet knurling requirements, eliminating the need for post-machining adjustments.
Cutting geometry enables high feed rates and exceptional stability.
Available in PD10 and PD20 grades.
Achteck Brazed PCD Face Milling Cutters

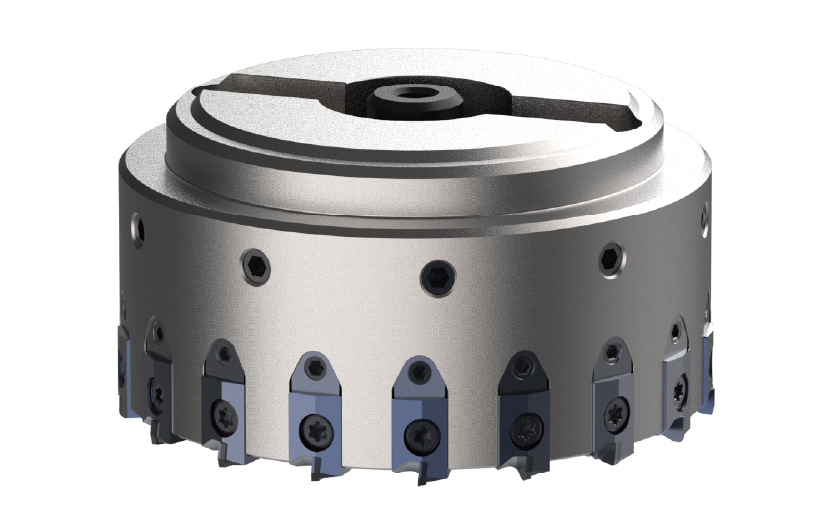

PCD Face Milling Cutters
Adjustable Cartridge-type PCD Face Milling Cutters
Covers hole diameter range D63-D250.
Tool body made of aluminum alloy (for D80 and above).
Precise internal coolant channels with variable-pitch tooth design.
Four insert configurations available: face milling, shoulder milling, knurling, and wiper edge finishing.
Adjustable Cartridge-type PCD Face Milling Cutters

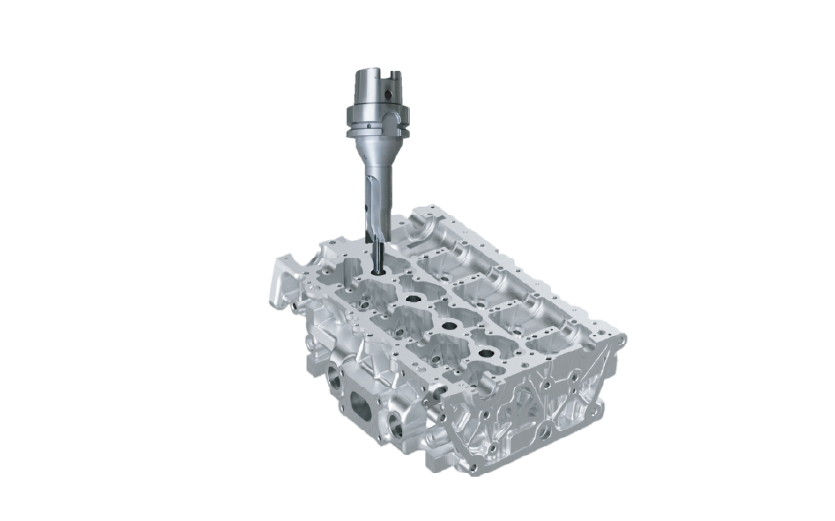

Spark Plug Hole Machining
AchtECK Custom Composite PCD Tool
Monolithic drill and PCD tool composite design ensures bore coaxiality.
PD10 material ensures high machining efficiency and excellent wear resistance.
AchtECK Custom Composite PCD Tool

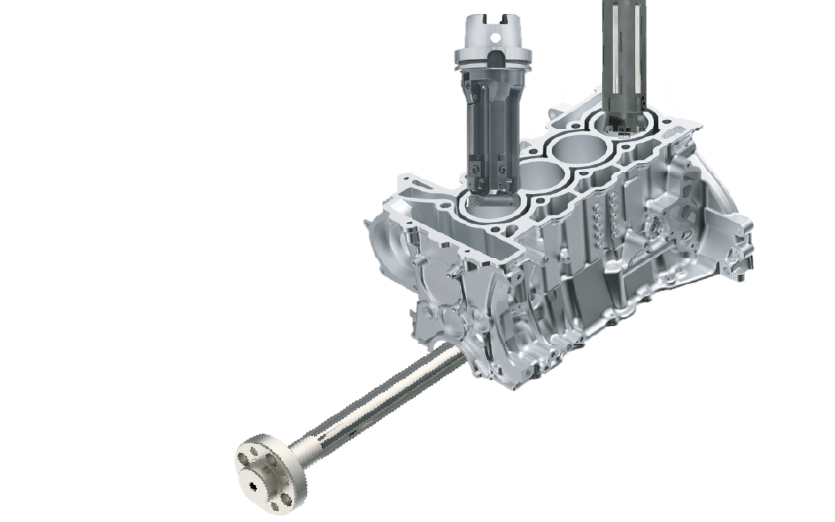

Boring Machining
Achteck Custom Boring Tool
Exceptional precision and machining capability.
Inserts use Achteck standard inserts.
Tool holders feature high adjustment accuracy.
Achteck Custom Boring Tool
