Flap guide rails are primarily made of titanium alloy, which exhibits difficult-to-machine characteristics including high hardness, high strength, corrosion resistance, and high temperature resistance. These materials cause severe tool wear, significant work hardening, and challenging cutting conditions.
-
-
- Watch Case
- Lens Ring
- Industrial Lens Mount
- Joint Components - Femoral Part
- Joint Components - Tibial Tray
- Joint Components -Femoral Stem
- Trauma Components - Bone Plate
- Cervical Spine Components - Pedicle Screw Dovetail Head
- Joint Components - Acetabular Cup Machining Solution
- Joint Components - Femoral Cap
Tooling Solutions for Structural Component Machining
High Feed Milling of Cavities
High Feed Milling Cutter AHM20-LN06
20° approach angle, minimum diameter D16.
Negative, double-sided 4-edged indexable inserts.
Rectangular insert design with robust cutting edges.
Features the AP403S grade for difficult-to-machine materials.
High Feed Milling Cutter AHM20-LN06

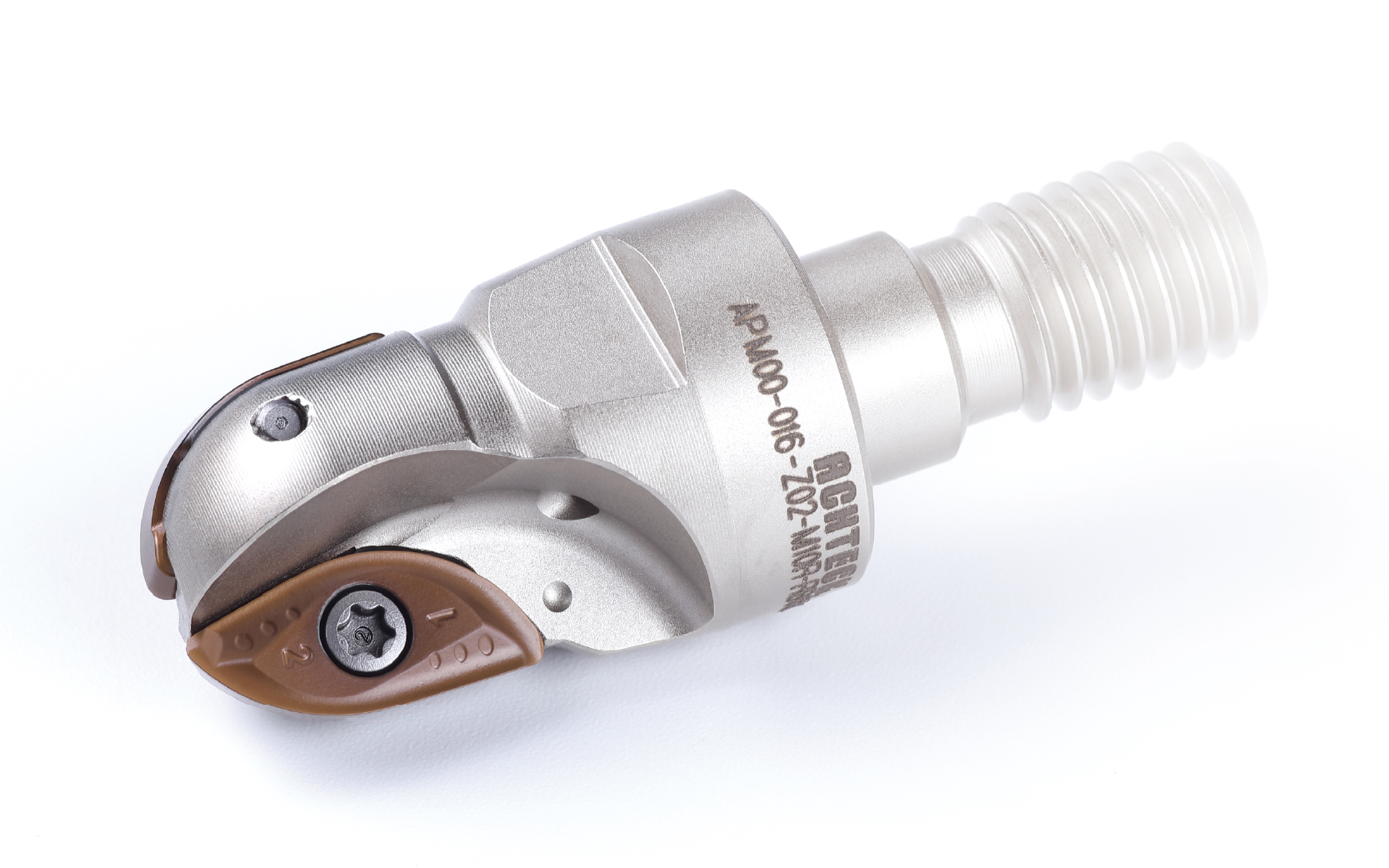

Roughing and Semi-Finishing of Transition Radii
High Feed Milling Cutter APM00-RPM08/10
Inserts feature anti-rotation locating slots at the base for secure clamping.
Helical cutting edge design reduces cutting forces.
2-in-1 insert design compatible with both peripheral and center inserts.
High Feed Milling Cutter APM00-RPM08/10

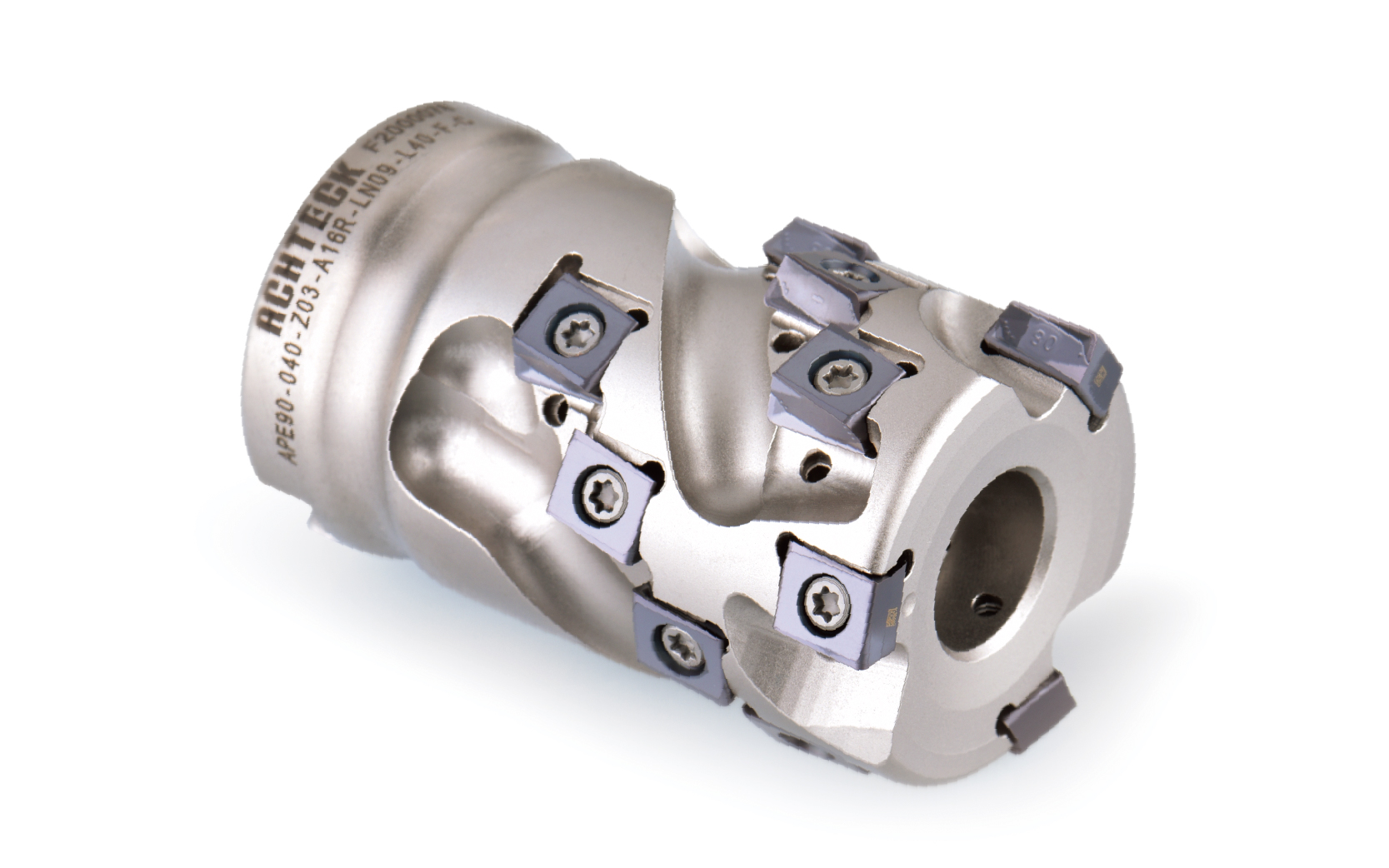

Roughing of External Cavity Profiles
High Feed Milling Cutter APE90-LN09/LN13
Full-tooth corn-style milling cutter.
Precision internal coolant design.
Tangential insert layout with high cutting load capacity and enhanced safety.
Features the AP403M grade for difficult-to-machine materials.
High Feed Milling Cutter APE90-LN09/LN13
