Landing gears are primarily made of high-alloy steel or titanium alloy, which exhibit difficult-to-machine characteristics including high hardness, high strength, corrosion resistance, and high temperature resistance. These materials cause severe tool wear, significant work hardening, and challenging cutting conditions.
-
-
- Watch Case
- Lens Ring
- Industrial Lens Mount
- Joint Components - Femoral Part
- Joint Components - Tibial Tray
- Joint Components -Femoral Stem
- Trauma Components - Bone Plate
- Cervical Spine Components - Pedicle Screw Dovetail Head
- Joint Components - Acetabular Cup Machining Solution
- Joint Components - Femoral Cap
Tooling Solutions for Landing Gear Machining
Deep Hole Machining of Main Cylinder Bores
Deep Hole Drill Series
Covers bore diameters from D25 to D65.
Versatile insert grades compatible with ISO P, M, and S material groups.
Features the AP403M grade for difficult-to-machine materials.
Deep Hole Drill Series
Roughing and Semi-Finishing of Transition Radii
High Feed Milling Cutter APM00-RPM08/10
Inserts feature anti-rotation locating slots at the base for secure clamping.
Helical cutting edge design reduces cutting forces.
2-in-1 insert design compatible with both peripheral and center inserts.
High Feed Milling Cutter APM00-RPM08/10

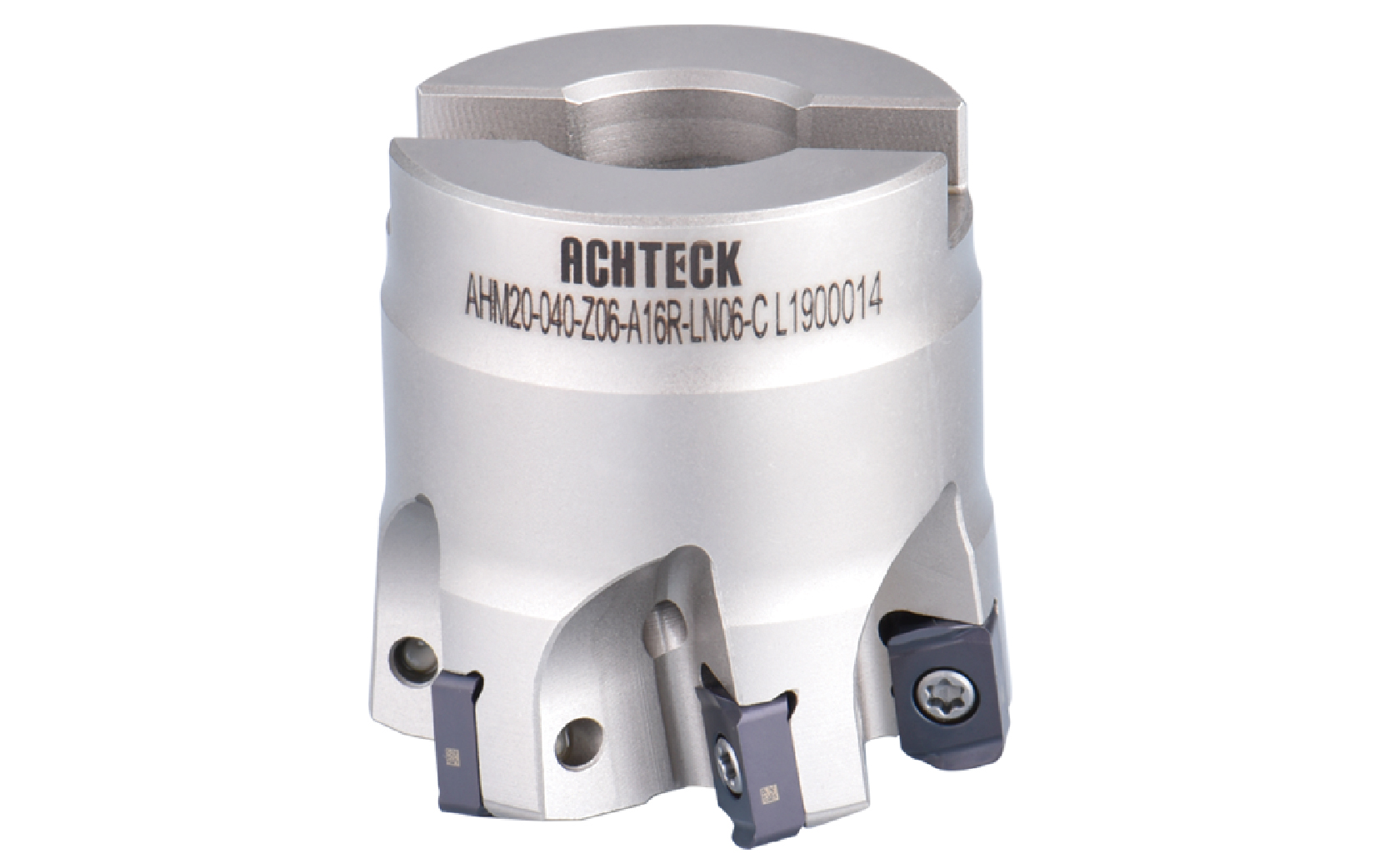

High Feed Milling of Mounting Surfaces
High Feed Milling Cutter AHM20-LN06
20° approach angle
Negative, double-sided 4-edged indexable inserts
Rectangular insert design with robust cutting edges.
High Feed Milling Cutter AHM20-LN06
5-Axis Contour Milling
High Feed Milling Cutter APM00-RO10/12/16
Round inserts with multiple anti-rotation locating faces for secure clamping.
Cutting edge geometry designed for high feed rates and exceptional stability.
Features the AP403M grade for difficult-to-machine materials.
High Feed Milling Cutter APM00-RO10/12/16
