Reducer housings for new energy vehicles are typically made of cast aluminum alloy. These components are characterized by thin walls and high dimensional accuracy. For sealing purposes, the mating surfaces often require knurling.
-
-
- Watch Case
- Lens Ring
- Industrial Lens Mount
- Joint Components - Femoral Part
- Joint Components - Tibial Tray
- Joint Components -Femoral Stem
- Trauma Components - Bone Plate
- Cervical Spine Components - Pedicle Screw Dovetail Head
- Joint Components - Acetabular Cup Machining Solution
- Joint Components - Femoral Cap
Tooling Solutions for Reducer Housing Machining

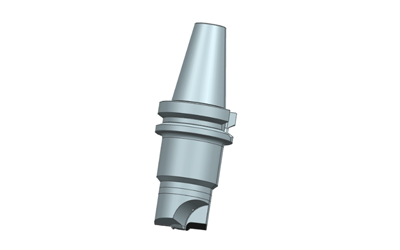

Spot Facing Machining
Combined spot facing and chamfering operations for enhanced dimensional stability.
Custom non-standard designs available based on customer dimensions.
Custom Brazed PCD Composite Tool
Pin Hole Machining
Semi-custom design for fast lead times.
PD10 grade ensures high-efficiency machining with superior performance.
PCD Reamer
Mating Surface Machining
Adjustable Cartridge-type PCD Face Milling Cutter
Coverage range: D63-D250
Tool body made of aluminum alloy (for D80 and above)
Precise internal coolant channels with variable-pitch tooth design
Four insert configurations available: face milling, shoulder milling, knurling, and wiper edge finishing
Adjustable Cartridge-type PCD Face Milling Cutter

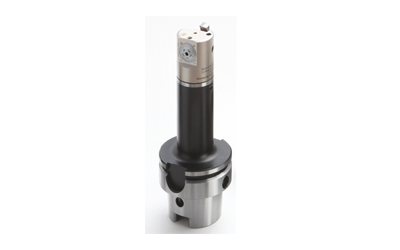

Bearing Hole Finishing Machining
High stability and compact structural design ensure rigidity while minimizing tool weight.
The cartridge features an adjustment mechanism for rapid machining dimension adjustment.
Fine Boring Tool
