Steam turbine cylinder casings are cast from heat-resistant cast steel, combining high strength and high temperature resistance. With uneven wall thickness, large casting allowance and uneven hardness, they are prone to cutting vibration and deformation, making them large difficult-to-machine housing components.
-
- Watch Case
- Lens Ring
- Industrial Lens Mount
- Joint Components - Femoral Part
- Joint Components - Tibial Tray
- Joint Components -Femoral Stem
- Trauma Components - Bone Plate
- Cervical Spine Components - Pedicle Screw Dovetail Head
- Joint Components - Acetabular Cup Machining Solution
- Joint Components - Femoral Cap

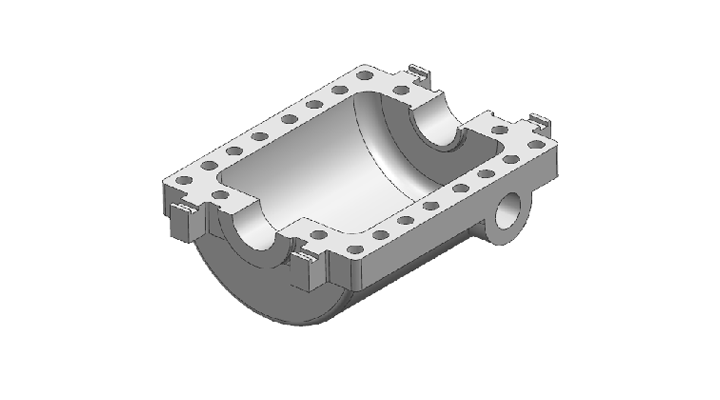

Steam Turbine Cylinder Casing Machining Solutions

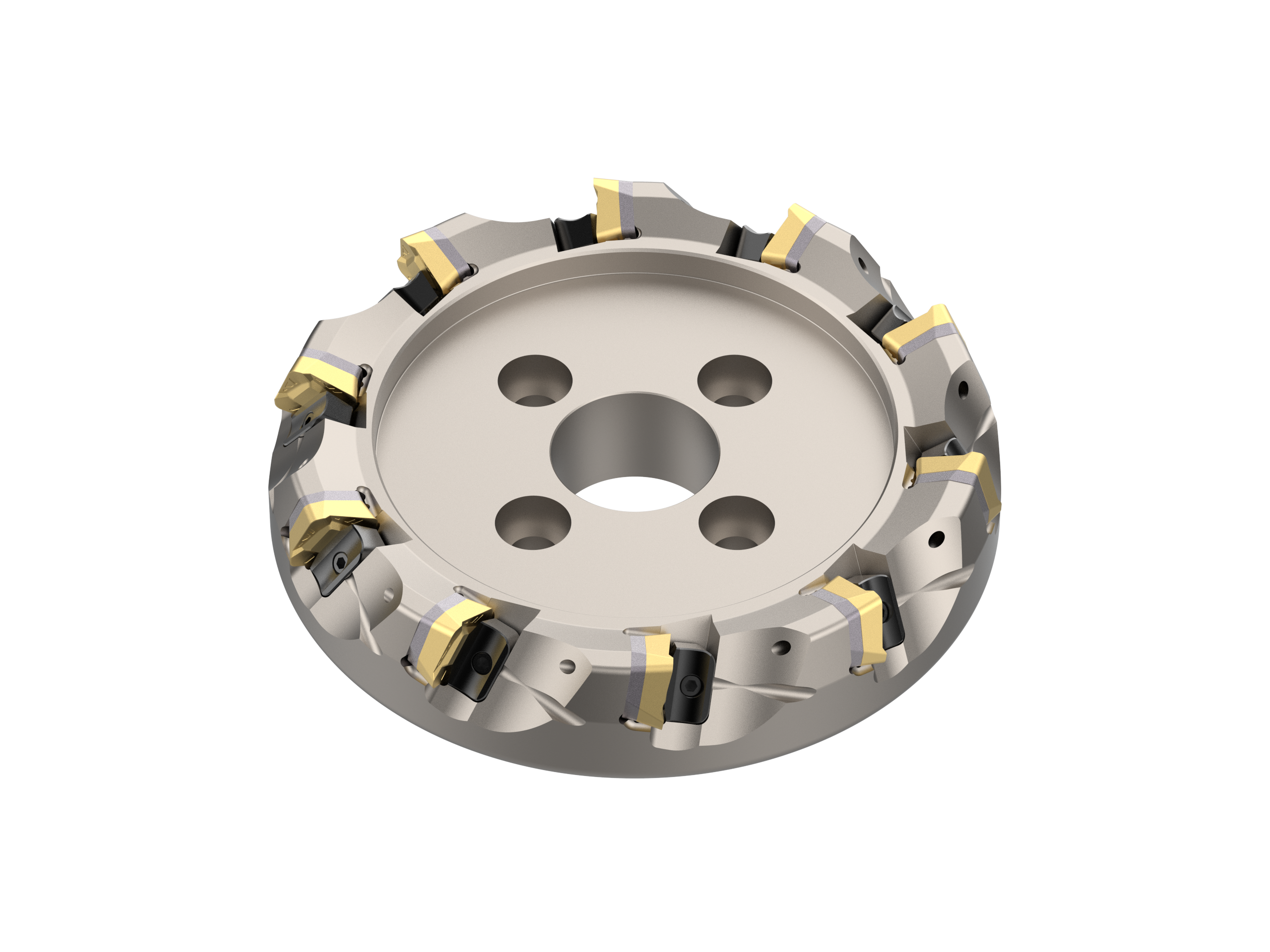

Rough Milling of Cylinder Split Face
Heavy-duty Face Mill XFM-70
70° principal cutting edge angle, diameter range D160–D315
Positive 4-edge indexable inserts with robust cutting edges and light cutting forces
Wedge clamping structure for higher insert change efficiency
Equipped with insert seat protection to prevent damage to the cutter body
Heavy-duty Face Mill XFM-70

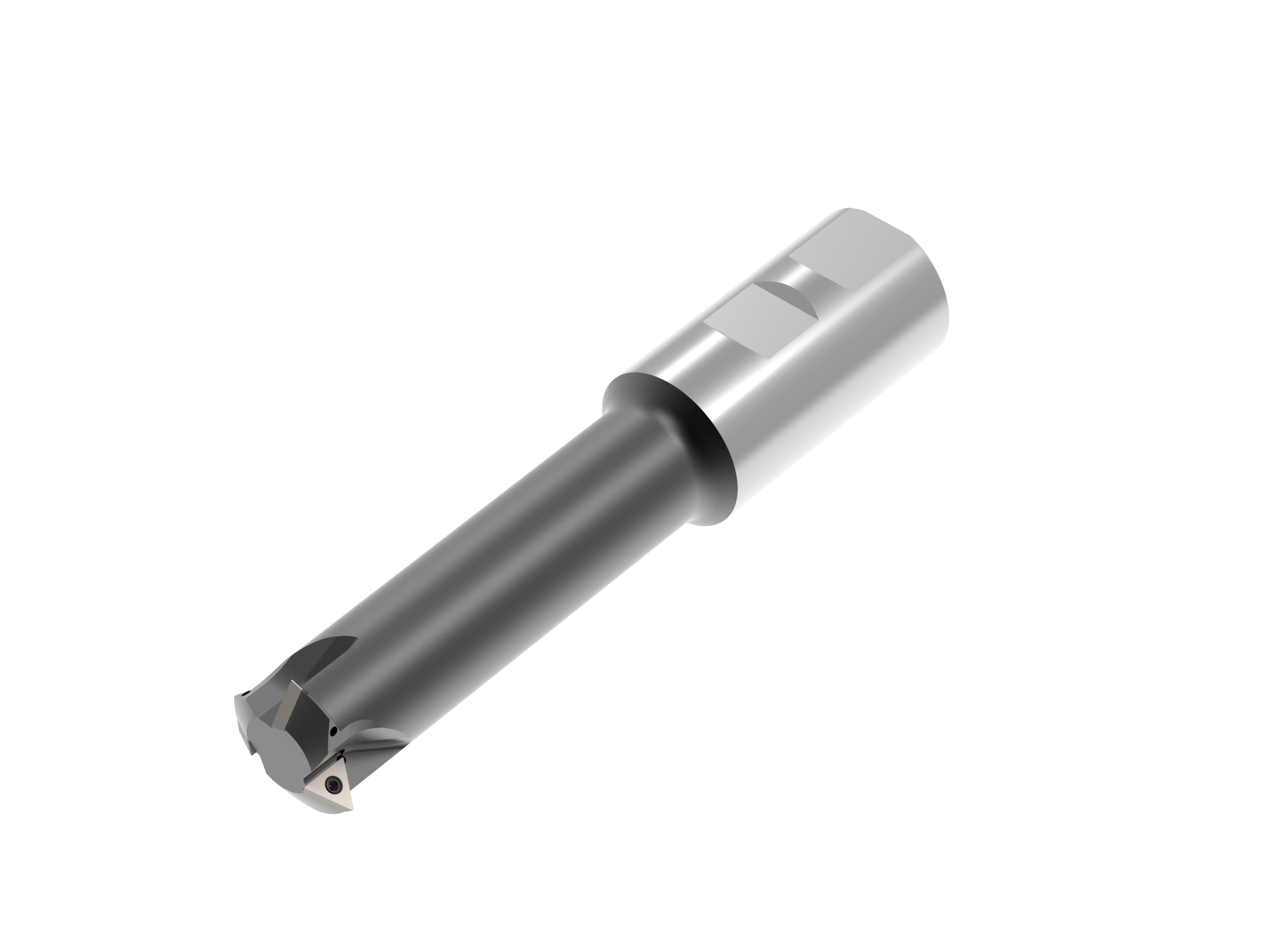

Large Thread Hole Machining
ATM60 Series Thread Milling Cutters
Universal insert grade, suitable for P, M and S workpiece materials
Supports internal thread hole depth machining up to 2.5×D
Available in single-row and multi-row tooth cutter bodies for different machining efficiency requirements
Thread hole machining range: M20–M64
ATM60 Series Thread Milling Cutters

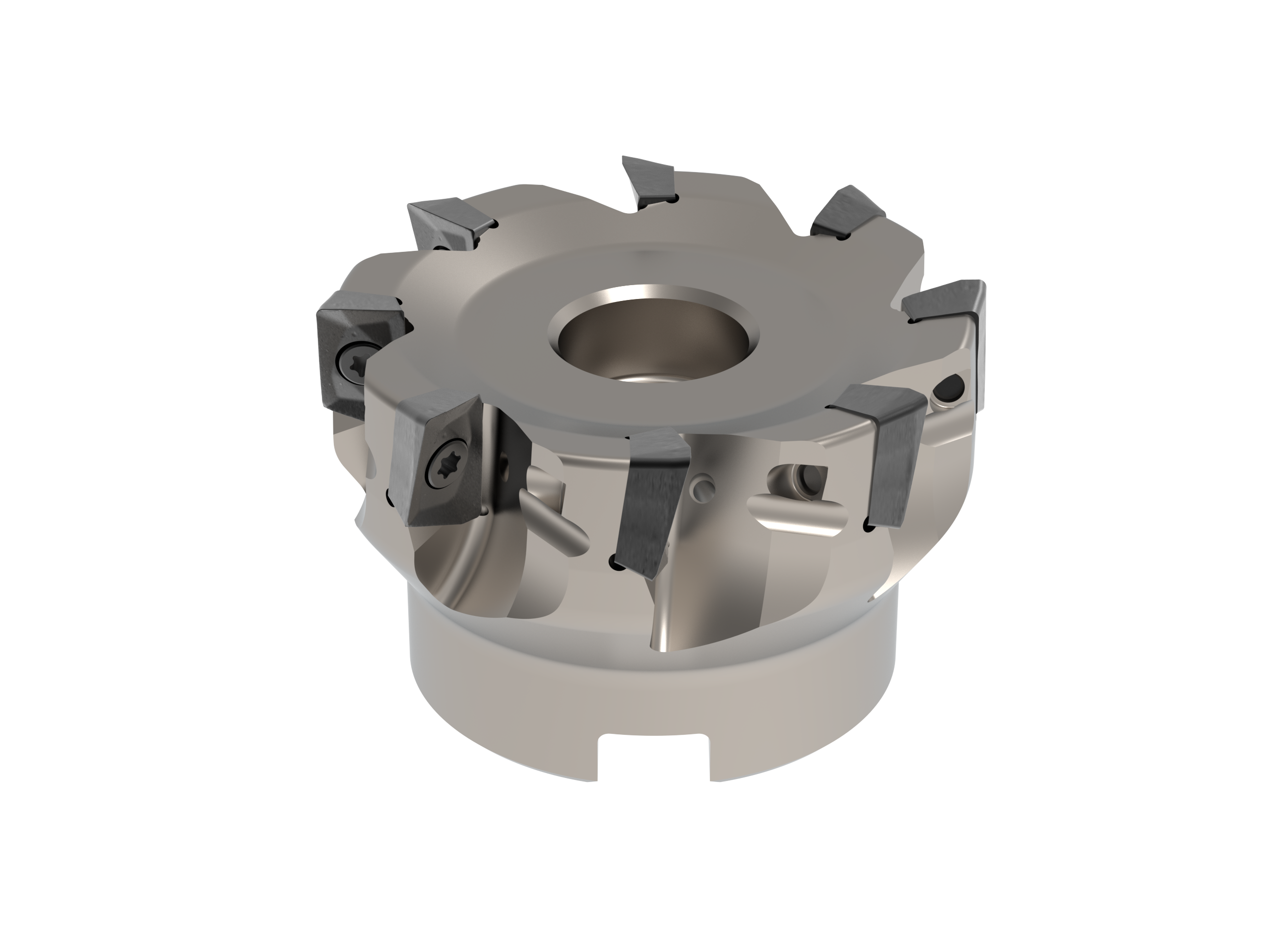

Machining of Cylinder Step Faces
Shoulder Milling Cutter ASM90-AO12
90° principal cutting edge angle, diameter range D20–D80
Cutter bodies available with various interfaces, diameters and coarse/fine tooth options
Positive indexable inserts, AP403M grade is suitable for cast steel machining
Shoulder Milling Cutter ASM90-AO12
Machining of Inner Slot Faces on Cylinder
Custom Three-edge Side Milling Cutter
Inserts: standard or custom inserts
AP403M grade as the first choice
Modular cartridge design on cutter body, interchangeable for roughing and finishing operations
Custom Three-edge Side Milling Cutter
